802.15.4 Relay
ProXR Lite Relay 1-Channel 30-Amp SPST with 802.15.4 Interface
Product Code: R130PL_802154

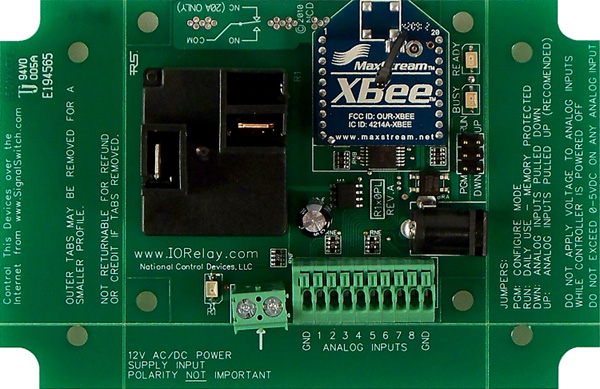

R130PL_802154 ProXR Lite Controller
The R130PL_802154 features the same ProXR Command set as our more expensive boards without the expandability of a full ProXR controller.
ProXR Lite Series at a Glance
- Low-Cost High-Volume Surface Mount Machine-Manufactured Design
- Based on 5-Year Warranty Designs with Limited Warranty to Lower cost
- Offers 100% Emulation of ProXR Enhanced Command Set
- 8-Channel of 8/10-Bit Analog to Digital Conversion
- Supports 1, 2, 4, or 8 Relays on Bank 1
- Not Expandable to Save Cost
- Aggressive Quantity Discounts Available
- Available with USB, 802.15.4, XSC, or ZigBee Mesh Interface
Video Resources
(Select a thumbnail to view the video)ZigBee Intro
Learn about the ZigBee Wireless Communications and how it stacks up to other Wireless Communication Protocols we use
ZigBee Setup
Watch as we show you how to Set Up the Hardware and the Software necessary to use your Controller
ZigBee Troubleshooting
Learn how to Troubleshoot your ZigBee Relay Controllers using the XCTU Software
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wireless Communications
Learn the basics of wireless communications and find the right wireless controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Wireless Range Test
Test of the range of our Wireless Communication Options
802.15.4 Range Test
Test of the range of our IEE 802.15.4 Wireless Communication Options
Resources:
This Product:
Related Products:
R120PL_802154
 |
ProXR Lite Relay 1-Channel 20-Amp SPDT with 802.15.4 Interface |
| Stock#: R120PL_802154 | |
| 1-9 | $98.00 |
Power Supply Available
PWR12 Power Supply
 |
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards |
| Stock#: PWR12 | $48/pr |
Enclosures Available
TFL Enclosures
 |
The TFL Enclosure is an undrilled, non-waterproof enclosure and is available at checkout for this controller. |
| Stock#: ENC-TFL | $19/ea |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
Wireless 802.15.4 ProXR Lite Enhanced with A/D
Take all the Power of the ProXR Series Relay Controllers
...add a Digi Wireless 802.15.4 Compliant Interface:
Remote Data Collection and Control is Effortless!
It works like this. Plug our Wireless 802.15.4 modem into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all Wireless 802.15.4 compliant devices within range (it is also possible to speak to a specific device when other controllers are in range). A ZigBee modem can be purchased with this board at checkout.
Easy Software Development
Most of our customers write their own program for controlling these devices and use almost any language to do this. This boards supports the Serial Port Profile, meaning they will mount to the computer as a virtual com port making it very easy to send commands to the device. This board will support almost any programming language you are comfortable with.Plug-In for Visual Studio
The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs. Over 40 samples included with this free download! Component Library.Base Station Software
Base Station will assist you in learning how this device functions and is the ultimate reference tool for setting up, testing and controlling this device. Base Station software supports every feature of this device - no other controller manufacturer even comes close to offering this type of software. Base Station works by communicating with your controller to identify the model and provides the appropriate graphical user interface for setting up and testing the identified device. To help you get started and learn this controller Quick Start Guides are available for just about every feature. As you discover a feature in Base Station a link is provided where you can easily download the Quick Start Guide.
ProXR Lite Relay
We've looked at the interface and the programming now let's take a look at the board design itself. The ProXR Lite series controllers are machine manufactured for a highly accurate and reliable design. Fully tested before they leave the production facility each ProXR Lite controller is ready to stand up to rigorous demands from heat, cold or vibration. The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions. Take it from us, these controllers will hold up!Break-A-Way Tabs for a Smaller Design
The ProXR Lite relays have a great feature where space is a premium - Break-A-Way Tabs. The Break-A-Way Tabs allow most boards to fit in an optional undrilled plastic enclosure. Snap off the Break-A-Way Tabs and you have a controller with a smaller profile when you need to fit in a tight space.Not Expandable
Unlike it's big brother, the ProXR Series, the ProXR Lite series controllers are NOT expandable. The firmware still thinks 256 relays are available but the relay portion of the controller only responds to the first 1, 2, 4 or 8 relays in Bank 1.Read Analog Sensors
We did NOT skip the Analog Input portion of the ProXR Lite. All ProXR Lite controllers offer a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. Read and control from 8 sensors per board from 0 to 5 volts. Look for more on this below.Full ProXR Enhanced Firmware Installed
This board has ProXR Firmware installed that responds to the full ProXR Command Set - it's just not expandable. The ProXR Firmware is the industry leading firmware for controlling relays with more commands and functionality than any other board on the market. The list of commands and parameters this board is capable of is extensive. ProXR Enhanced is the newly released enhance version of the ProXR Firmware with more commands, more functionality and better control than ever before! For a detailed list of all the commands with descriptions see our ProXR Enhanced Command Set.
RoHS Option
Order your board lead free and be RoHS Compliant. If your requirements are for RoHS compliant parts this board can be ordered to be manufactured with RoHS compliant lead free parts and solder. Just look for the RoHS option at checkout. 30-Day Warranty/Money Back Guarantee
ProXR Lite series controllers are guaranteed against manufacturing and functionality defects for a full 30 days! Not to mention a 30-day money back guarantee! If for any reason you are not happy with a relay purchased from National Control Devices, simply return it within 30 days and we will give you your money back! Controllers that are damaged by our customers will not of course be warranted under any circumstances.Thousands or Relay Cycles
ProXR Lite series controllers are designed for long life, you should expect to get years of service from your controller and literally thousands of cycles from the relay(s) onboard. With a 30-day warranty and a money back guarantee you have nothing to loose! Place your order now, while everything is in front of you.Shipping
The boards sold are brand new units shipped from our office conveniently located in Missouri. These boards are completely tested before they are released for shipping With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship.ProXR Lite Is Here!
A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a lists of great features:- User Friendly Board Design
- Surface mount allows for a smaller more reliable board
- Break-A-Way Tabs lets you decide the board's size
- Screw terminal or direct relay connections make connecting to the board easy
- ProXR Lite Features
- Works with the full ProXR Enhanced Command Set
- 8-Channel 8/10-Bit Analog to Digital Converter
- Highly reliable relay with industry leading command set
- ProXR Lite Limitations
- This controller cannot be expanded
A/D Conversion on the
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into select boards mostly 4 & 8 channel, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.A/D Sample Programs Available
Eight Different A/D Sample programs are available in the Component Library. These samples are available as a free download and are compatible with Visual Studio.Attention: ZUSB Communication Module
Please Note: All customers are STRONGLY ADVISED to purchase at least ONE USB Communication Module (Part Number ZUSB). This communication module may be used to recover a controller or to reconfigure a controller should there be an accidental loss of communications. NCD Tech support may be unable to assist customers who do not have a USB Communications Module available for troubleshooting purposes.
