ProXR Lite Relay Controller

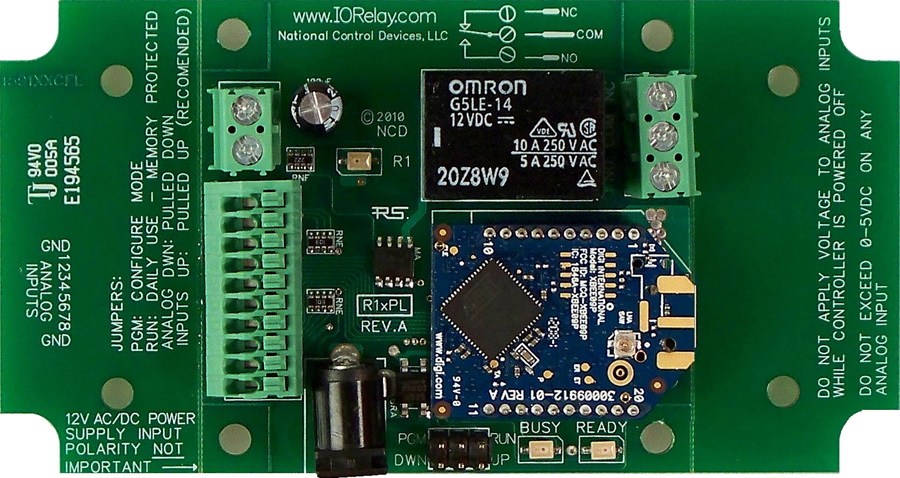

ProXR Lite Relay 1-Channel 10-Amp SPDT with XSC Interface
Product Code: R110PL_XSC
ProXR Lite Series at a Glance
- Low-Cost High-Volume Surface Mount Machine-Manufactured Design
- Based on 5-Year Warranty Designs with Limited Warranty to Lower cost
- Offers 100% Emulation of ProXR AD8 Firmware
- 8-Channel of 8/10-Bit Analog to Digital Conversion
- Supports 1, 2, 4, or 8 Relays on Bank 1
- Not Expandable to Save Cost
- Aggressive Quantity Discounts Available
- Available with USB, 802.15.4, XSC, or ZigBee Mesh Interface
Video Resources
(Select a thumbnail to view the video)Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wireless Communications
Learn the basics of wireless communications and find the right wireless controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Wireless Range Test
Test of the range of our Wireless Communication Options
XSC Range Test
Test of the range of our XSC Wireless Communication Options
Resources:
This Product:
Related Products:
Power Supply Available
PWR12 Power Supply
 |
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards |
| Stock#: PWR12 | $48/pr |
Enclosure Available
CFL Enclosure
 |
The CFL Enclosure is an undrilled, non-waterproof enclosure and is available at checkout for these controllers. |
| Stock#: ENC-CFL | $14/ea |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
XSC Long Range Wireless
ProXR Lite Controller Enhanced with A/D
Take all the Power of the
ProXR Command Set
...add a XSC Long Range Wireless Interface:
...and you've got More That a "Lite Relay Controller"!
Long Range Antenna
An outside antenna will need to be installed in order to reach the 15 mile limit of these devices. When you choose this optional antenna we will include everything you will need to install this except for the pole. Included will be the Cushcraft PC9013 antenna, 20 feet of cable (longer cables are not recommended) and the connector to connect the board to the cable. Purchase a pole to mount the antenna from your local home improvement store and install the antenna. Connect the board to the antenna via the provided cable and start sending commands.
ProXR Lite Is Here!
A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a list of great features:
User Friendly Board Design- Surface mount allows for a smaller board
- Break-A-Way Tabs lets you decide the board's size
- Interchangeable interfaces allows you to upgrade or change your interface at any time
- Works with the full ProXR Command Set
- 8-Channel 8/10-Bit Analog to Digital Converter
- Highly reliable relay with industry leading command set
- This controller cannot be expanded
ProXR Lite Relay Controller
The ProXR Lite Series is a great alternative for those looking for a low cost solution that requires the power and reliability of a ProXR Controller. With a wide selection in Relay type and Communication Interface there is a ProXR Lite board to match your application. Every ProXR Lite Board has Breakaway Tabs that give you the option to make the board smaller or fit it for an enclosure. Interchangeable Interface Modules allow you to switch communication interfaces by simply powering down the device and replacing the module.
The ProXR Lite series are based on the same designs that offer a 5 year warranty. However, in an effort to further save cost, we have limited the warranty of the ProXR Lite series controllers. ProXR Lite series controllers are guaranteed ONLY against manufacturing and functionality defects for a period of 30 days. Controllers that are damaged by our customers will not be warranted under any circumstances. ProXR Lite series controllers are designed for long life; however, should they be damaged, they should be discarded and replaced.
Unlike the ProXR series relay controllers, ProXR Lite series controllers are NOT expandable. The firmware still thinks 256 relays are available, however, the relay portion of the controller only responds to the first 1, 2, 4 or 8 relays in Bank 1. We did NOT skip the Analog Input portion of the ProXR Lite. All ProXR Lite controllers offer a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. The ProXR Lite responds to the same firmware as the ProXR series controllers and is therefore 100% compatible with any applications designed to work with a ProXR series controller (click here to see the ProXR command set).
A/D Conversion on the R110PL_XSC
Analog to Digital conversion is available on the R110PL_XSC controller. Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. A/D Inputs are useful for reading, temperature sensors light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with the R110PL_XSC controller.Resources
| Download Manual | Download Product Manual |
| Configuration Utility | Download Latest X-CTU XSC Configuration Utility (Digi X-CTU Software lets you set advanced features of the XSC Module, not required for most applications) |
| Download Software | Download Example Software and Source Code |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

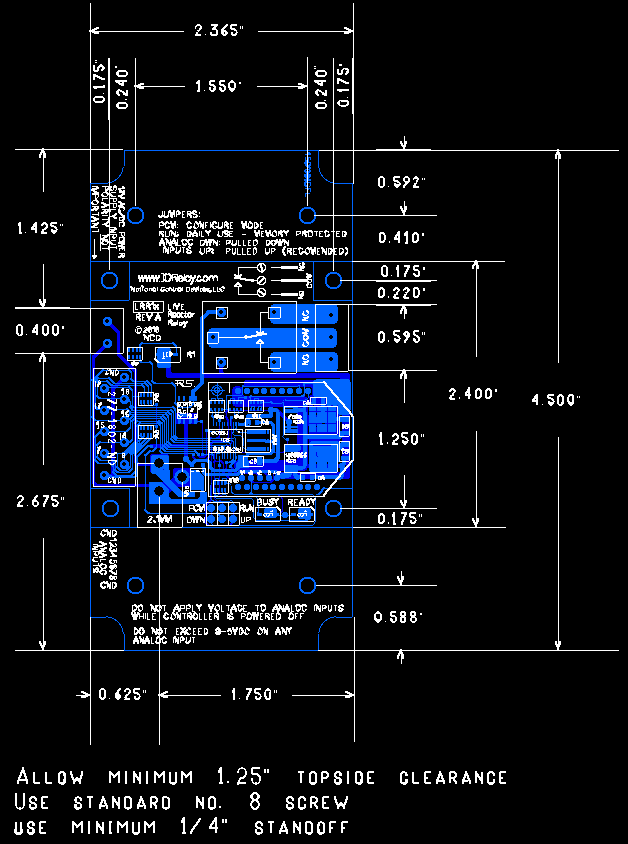

| Mechanical Drawing | Mechanical Drawing for this board |
