$401.00/ea

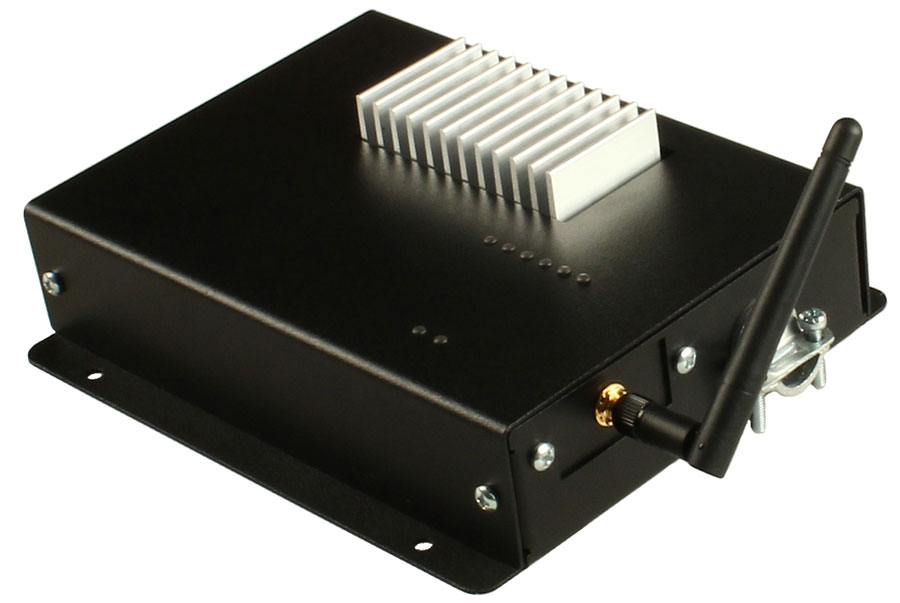

WiFi Light Dimmer

AC Light Dimmer 400W 2-Channel x 200W 120VAC 60Hz Single Circuit with a WiFi Interface

Product Code: P02C1-200HS_WIFI

P02C1-200HS_WIFI  Wi-Fi Light Dimmer
The P02C1-200HS allows you to control 255 Levels of Brightness for 2 different Lights over a Wi-Fi Network connection.

WiFi AC Light Dimmer

  • 4-Channels of AC Light Dimming
  • 200 Watts per Output Channel
  • 255 Brightness Levels per Channel
  • Programmable Fade Rates for Each Channel
  • Wi-Fi Wireless Communications
  • Flicker-Free Light Dimming
  • Fuse Protected 120VAC 60Hz Operation
  • Incandescent and LED Lighting Compatible
  • Industrial Wall Mounted Metal Enclosure

This Product:

P02C1-200HS_WIFI
Ratings AC Hz
Voltage 120 60
Amperage 200
AC Light Dimmer 400W 2-Channel x 200W 120VAC 60Hz Single Circuit with a WiFi Interface
Stock#: P02C1-200HS_WIFI
1-9 $401.00

Configuration Kit

WiFi Configuration Kit
The Configuration Kit is required in order to associate your Embedded WiFi Device with your network.
WiFi Configuration Kit $29/ea


Questions?

AccessNCD

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
Credit Cards Accepted
PayPal Accepted
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

4-Channels of AC Light Dimming

The new Pulsar Series AC Light Dimmers allow you to set the brightness level of multiple lights directly from your computer using a Wi-Fi Network Connection.

Introducing the Pulsar series Lighting controllers. The Pulsar series controllers are designed to offer an industrial grade light dimming solution with a heavy emphasis of connectivity to computers using a wide array of interface technologies. Whether you need to control lights across the room or from the other side of the planet, we have a solution available that offers flicker-free operation in an industrial design built to last many years.

The Pulsar Series controllers have many features that make them extremely easy to use. They are designed for hard-wired installation and are designed to operate every hour of every day.

How it Works

The Pulsar Series controllers wait for a light dimming command. When a command is received, the lights will fade or brighten according to your instructions. The Microprocessor that powers the Pulsar Series is capable of simultaneously handling communications while dimming operations are in progress in the background, keeping your computer free to service other tasks.

The Pulsar Series controllers have 5 buffers that work together to handle your light dimming requests. Buffer number one is used to immediately set the light level to the brightness you desire. Buffer number two is what we call a migration buffer. When a brightness level is stored in the migration buffer, the light levels will gradually change (automatically) to match the migration buffer level. This is particularly useful if you want lights to fade on and off. Instead of writing all the code to fade the lights on and off, you simply tell the second buffer what level you want the lights to migrate to. Since the lights will fade automatically, your computer is free to service other tasks.

Buffers three and four are used to define how fast lights go on and off respectively. So lights can turn on instantly and fade out slowly. Or you can use buffer 5 to set the on and off rate to the same speed (using one command). This allows lights to fade on and off at the same rate.

You have 255 levels of brightness control at your disposal. A brightness level of 0 is off and a value of 1 is very dim (and 254 is full brightness). You can change the AC timing characteristics so that 1 is extremely dim (ideal for LED lighting applications) or so that 1 is an actual usable brightness (for incandescent lighting applications). We have included 3 profiles to help get you started, and you can change our settings to match the types of lights you intend to control.

Just for fun, we added a few lighting effects to help us test out the speed of the microprocessor (requires a controller with 3 or more channels to see the lighting effects). The Pulsar series controllers are not designed for stage lighting applications, as DMX controllers are better suited for lighting effects. And while we are on the subject of DMX... (we know we are going to get this question a lot)... so here goes...

No DMX!

First, it should be stated that we are huge fans of DMX! DMX is a wonderfully mature standard and is the best choice for many lighting effect applications. However, the Pulsar Series light dimmers are not compatible with DMX software or hardware. It is not likely that we will ever make any devices compatible with DMX technologies, as we have a very different goal in mind. We believe DMX to be a wonderful standard, and there are many manufacturers to choose from who offer mature DMX light dimming solutions. So if you need DMX compatibility, the Pulsar series controllers should not be considered. If you need a wide range of connectivity options, or if you need control of your lights from anywhere in the world, we hope you will consider the Pulsar series controllers.

Compatibility

The AC Pulsar Series controllers ONLY function at 120VAC at 60Hz. These devices are NOT compatible with 250VAC or 50Hz operating frequencies at this time. Pulsar series controllers have been tested with LED and incandescent lighting technologies. Pulsar Series controllers may damage CCFL (energy saver pigtail bulbs) and Fluorescent lighting technologies if these kinds of lights are dimmed. The Pulsar Series controllers have not been tested with Mercury vapor lighting technologies but is not recommended for dimming applications (though it is compatible with on/off operations). As a general rule, if it has a filament it is compatible. If it has a transformer, it may be turned on or off, but it should never be dimmed. The Pulsar series light dimmers should NEVER be used with any form of motor or inductive load as they were not designed to handle the surges and spikes generated by these kinds of AC loads. AC motors may damage the Pulsar Series controllers.

Configuring the WiFi Module

You must have a WiFi Configuration Kit in order to configure your WiFi Module to Connect to your Network. We have provided Configuration Software that makes Configuring the device simple.

On the software side you'll need to install the FTDI Drivers, the .NET Framework v4, and download the NCD WiFly Configuration Software.

AC Light Dimmer 400W 2-Channel x 200W 120VAC 60Hz Single Circuit with a WiFi Interface

Product Code: P02C1-200HS_WIFI
AC Light Dimmer 400W 2-Channel x 200W 120VAC 60Hz Single Circuit with a WiFi Interface
$401.00/ea

Quantity in Basket: None
Code: P02C1-200HS_WIFI
Price: $401.00
Shipping Weight: 2.00 pounds

Would you like a WiFi Configuration Kit to configure your device? **Required** (Only one is needed to configure all your WiFi Modules):
Yes, I would like a WiFi Configuration Kit necessary to configure my WiFi Module ( +$29 )
No I already have a WiFi Configuration Kit or ZigMo to configure my WiFi Device to access my Network

I Understand this Device May Require up to 10 Business Days to Complete the Manufacturing and Testing Cycle


Quantity:

AC Light Dimmer 400W 2-Channel x 200W 120VAC 60Hz Single Circuit with a WiFi Interface
