NWUXPR410PROXR WiFi Relay

Discontinued - This item has been replaced by a new Item, see product description for details

Control this Device Over the Internet

Signal Switch Compatible

802.11b WiFi Network Data Collection and Relay Control with Future Expandability in Mind. This ProXR Series Controller is Feature Rich and Ready to Grow with your Needs! RealPort Drivers Map a Network IP Address to a COM Port!!!

Discontinued - This item has been replaced by a new Item, see product description for details
$303.00/ea

Product Resources:

	NEW TO WIFI COMMUNICATIONS? GET STARTED HERE Click the above link for an exclusive article on Network Communications
Download Manual	Download Product Manual
Network Drivers	Download RealPort Drivers to Map a Network IP Address to a COM Port, This is the Easiest Way to Get Started Controlling this Device
Download Software	Download Example Software and Source Code

Software Development Tools:

NCD Component Library

The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wireless Communications

Learn the basics of wireless communications and find the right wireless controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

Introduction to A/D

Learn about Analog to Digital Conversion and its uses

How to Find the Com Port

Learn how to find the Com Port that your Device is using

This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.

Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.

This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.

This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

Features

802.11b Wireless Network Interface Mounts as a COM Port on your PC Through your WLAN
With no Programming you can talk to our Networking Boards via the Internet using SignalSwitch.com, without a dedicated computer for the board.
Supports Telnet and Data Encryption with Password Protection
Embedded Digi Connect Wi-ME Wireless Network Interface & Web Server from www.digi.com
UXP Expansion Port Adds I/O Capabilities as your Needs Grow
Expandable to control up to 256 Relays using the XR Expansion Port
16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
Add Relays to this Controller is your Needs Ever Grow
Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
CPU Status LEDs Show Command Processing Activity

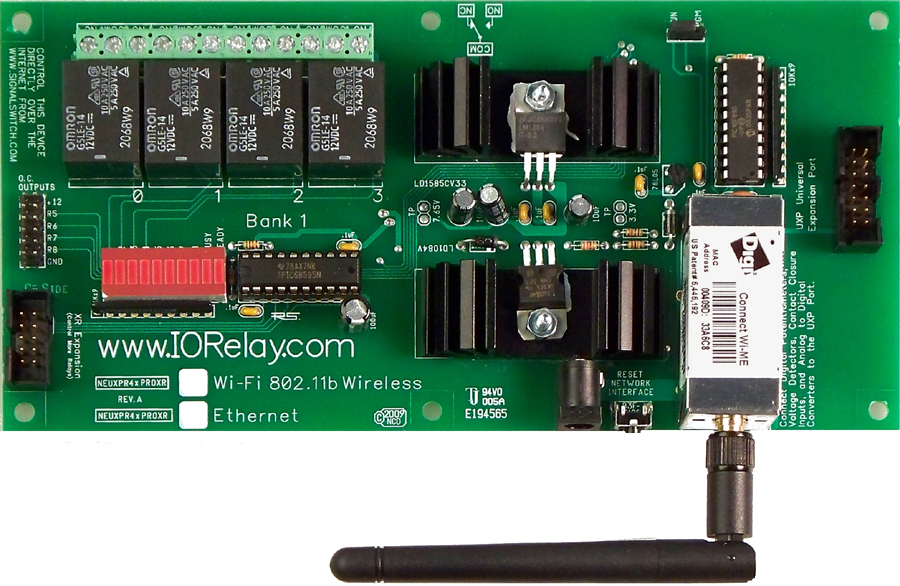

WiFi Relay

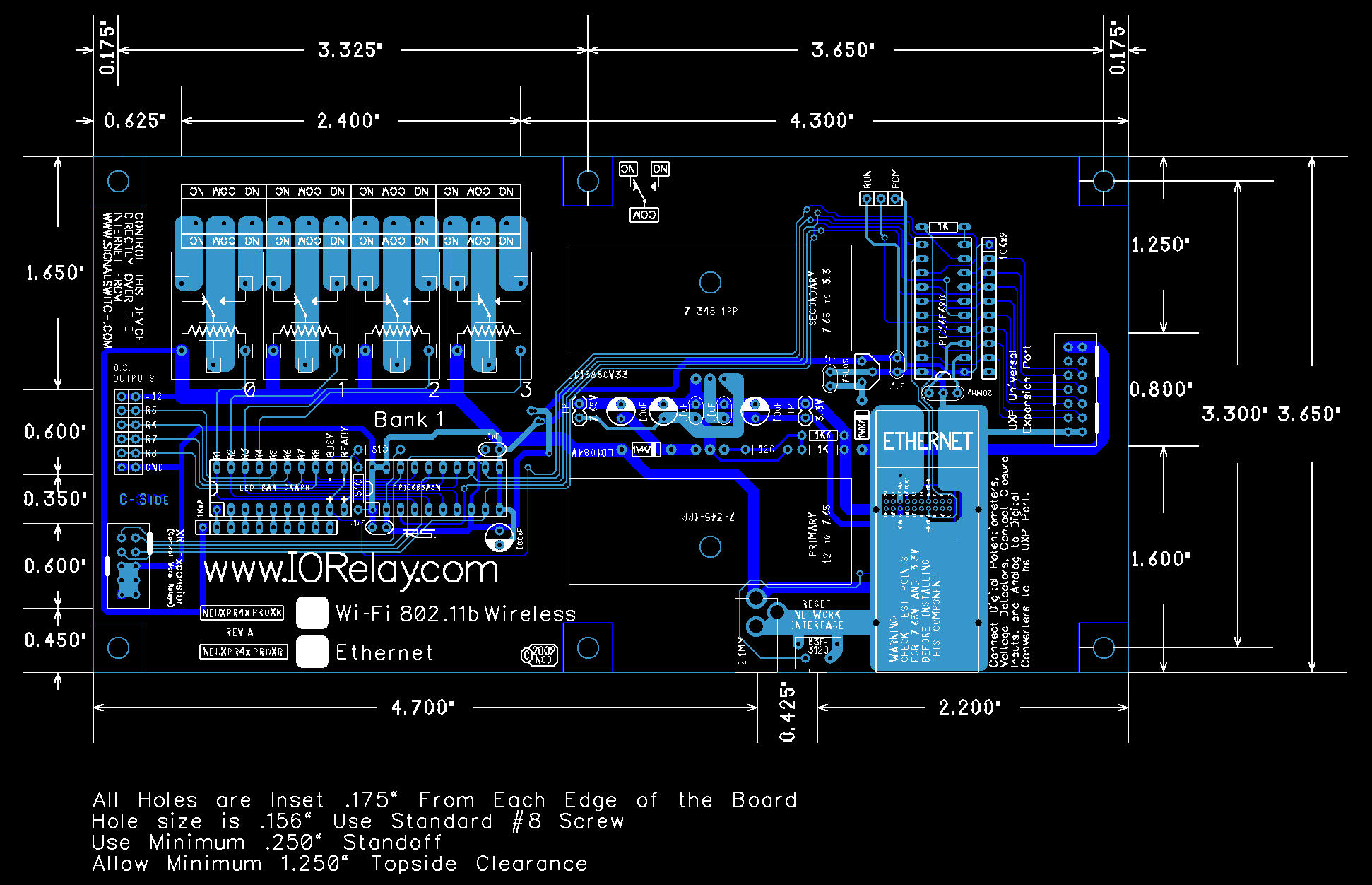

Mechanical Drawing

This Product:

NWUXPR410PROXR

Ratings	AC	DC
Voltage	240	24
Amperage	10	10

	Discontinued - This item has been replaced by a new Item, see product description for details
Stock#: NWUXPR410PROXR
1-9	$303.00

Related Products:

NWUXPR45PROXR

	Discontinued - This item has been replaced by a new Item, see product description for details
Stock#: NWUXPR45PROXR
1-9	$293.00

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

National Control Devices, LLC
www.controlanything.com
Since October, 1995

ProXR on the Wireless Network!!!

Wireless Network Data Collection and Relay Control Leaps Ahead into Today's Networks!!!

Imagine computer controlled switching and data collection from anywhere on your local area network...or from anywhere in the world!!!

RealPort Virtual COM Port drivers map a Network IP address to a COM port on your network...allowing you to control this device as though it were directly connected to a serial port on your PC. So network control is now as easy as speaking to a COM port on your local computer....except this device works over the network. This device also supports Telnet and Data Encryption with Password Protection. This device includes a Digi Connect Wi-ME Wireless Network Interface and Embedded Web Server from www.digi.com.

Simply Network this Wi Fi Board to your computer and power up the device. In no time you'll be talking to the board and any attached Expansion Boards. With no extra Programming you can talk to our Networking Boards via the Internet using SignalSwitch.com, without a dedicated computer for the board.

About ProXR

With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.

About Universal Expansion Ports

If you need to add capabilities beyond basic relay control to your application, then you may want to consider using one of our controllers equipped with a UXP Expansion Port. UXP is a standardized data port, specifically for the purpose of speaking to various expansion modules. This Relay Controller is equipped with a UXP port, allowing you to take advantage of extended commands to speak to our growing line of I/O expansion modules.

Discontinued - This item has been replaced by a new Item, see product description for details

Quantity in Basket: None
Code: NWUXPR410PROXR
Price: $303.00
Shipping Weight: 1.00 pounds

RoHS (Lead Free) Options:

	Non-RoHS Compliant
	RoHS Compliant 60-Day Production Time

12V Power Supply:

NCD Wi-Fi devices are available ONLY by special order and are NOT REFUNDABLE/RETURNABLE UNDER ANY CIRCUMSTANCES. Wi-Fi controllers are for advanced users ONLY who have extensive experience in network communications and who fully understand NCD device architecture. A Digi development kit for Wi-Fi communications is HIGHLY RECOMMENDED as this device can be difficult to work with. Technical support is limited to the articles we have posted on our web site. All Wi-Fi devices are extensively tested prior to shipment.

Quantity:

Discontinued - This item has been replaced by a new Item, see product description for details
