Product Discontinued
This product has been replaced by ZUXPSR165DPDTPROXR_ZETH-ME_WIFI
WiFi Relay with Standard Ethernet Firmware
Discontinued - This item has been replaced by a new Item, see product description for details
Product Code: NEUXPR165DPDTPROXR_WIFI
Control this Device Over the Internet
Signal Switch Compatible
Discontinued - This item has been replaced by a new Item, see product description for details

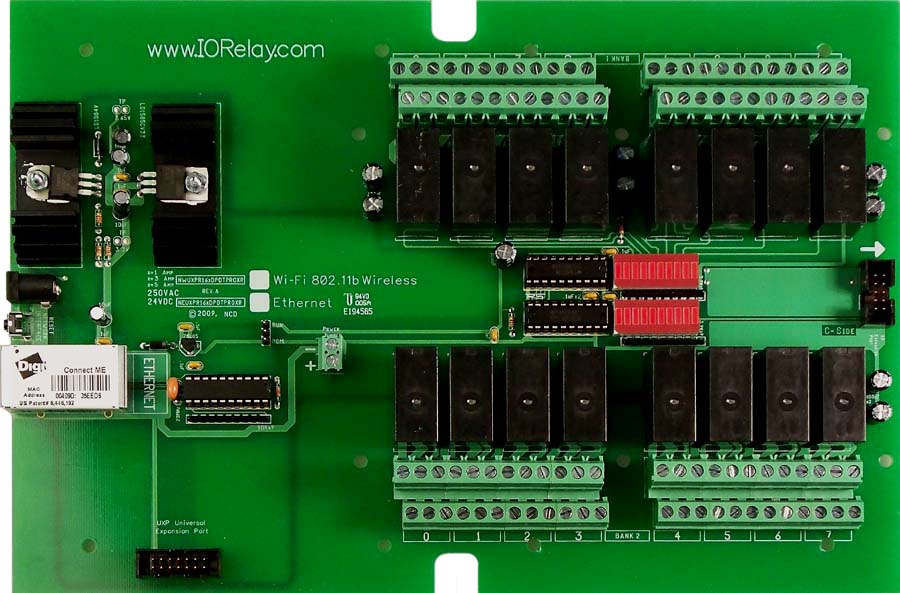

$615.00/eaOnce the Netgear WNCE2001 is configured to talk to your network simply connect it to the Ethernet Port of the NEUXPR165DPDTPROXR_WIFI and power up the device. In no time you'll be talking to the board. The UXP Expansion Port is located on the right side of board. Add Relay Expansion Boards to the XR Expansion Port located on the left side of board.
WiFi-NET with UXP Port at a Glance
- Internet or WLAN Controlled Web Relays
- Supports Multiple Communication Methods Simultaneously
- Supports Direct Internet Access Without a Server
- No static IP Required
- Supports Direct Connection to SignalSwitch.com
- Includes Extensive Network Configuration Options
- Supports DHCP
- Supports Fixed IP Address
- Password Protection
- Offers 100% Emulation of ProXR AD8 Firmware
- XR + UXP Expansion Board
Video Resources
(Select a thumbnail to view the video)Introduction to Ethernet
Learn about Ethernet Communications and how it is utilized by our Relay Controllers
Ethernet Setup
Watch as we show you how to Set Up the Hardware and explain your options for the Software necessary to Communicate to your Controller
Web-i Introduction
Get started with Web Control
Virtual Serial Port Setup
Learn how to use Digi Realport to Set Up a Virtual Com Port to communicate to your Networking Relay Controller
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
NEUXPR165DPDTPROXR_WIFI
| Ratings | AC | DC |
|---|---|---|
| Voltage | 240 | 24 |
| Amperage | 5 | 5 |
|
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: NEUXPR165DPDTPROXR_WIFI | $615.00 |
Related Products:
NEUXPR161DPDTPROXR_WIFI
 |
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: NEUXPR161DPDTPROXR_WIFI | $535.00 |
NEUXPR163DPDTPROXR_WIFI
 |
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: NEUXPR163DPDTPROXR_WIFI | $576.00 |
Enclosure Available
ECASE1 Enclosure
 |
The ECASE1 Enclosure is an undrilled, non-waterproof enclosure and is available at checkout for this controllers. |
| Stock#: ENC-ECASE1 | $24/ea |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
WiFi ME Firmware with UXP Expansion Port
Uses Digi Stock Digi Connect ME firmware and Wireless Adapter
Add Capabilities Beyond Basic Relay Control to Your Application
Wi-Fi Wireless Control with All the Benefits of the ME Ethernet Firmware!
For several years now, NCD has been the only maker of a powerful Ethernet Relay Controller, but now it's time for a New Generation of Controllers. We have just taken Network Communications a Huge Step Forward by Offering a Low-Cost and a High-Power Network Communication Solution.
Two Ethernet Modules Available |
|||
 |
 |
||
ME Firmware |
.NET Firmware |
||
Ethernet Network Module
This WiFi relay controller is based on the Digi Connect ME Ethernet communications module. This is a great low-cost solution that has empowered our users since 2005. The Digi Connect ME firmware allows you to login to the device and setup powerful network communication options. Though it does not offer a web browser interface for relay/device control, it does offer many powerful connectivity options for advanced networks at a very low cost. ME Firmware supports Virtual COM Port Ethernet Communications, Direct TCP/IP communications, or direct communication to SignalSwitch.com. ME Firmware is only capable of handling only one of these communication options at a time however.
Easy Software Development
RealPort Virtual COM Port drivers map a Network IP address to a COM port on your network...allowing you to control this device as though it were directly connected to a serial port on your PC. So network control is now as easy as speaking to a COM port on your local computer....except this device works over the network. This device also supports Telnet and Data Encryption with Password Protection. This device includes a Digi Connect ME Ethernet Interface and Embedded Web Server from www.digi.com.
Many Communication Protocols for Advanced Users
Advanced users may want to employ other communication protocols to speak the the Ethernet Relay Controller. NCD Ethernet Relay Controllers can also be controlled using Telnet. I.P. Addresses and are automatically or manually assigned. NCD Ethernet Relay Controllers also support security protocols such as Shared Key, WEP, WPA, and Cisco LEAP with support for WEP, TKIP, and CCMP data encryption.
DPDT Relay Controller
This device has DPDT relays installed. A single DPDT relay is made up of 2 SPDT switches. So each relay acts as two switches that are activated at the same time. This allows two independent signals to be switched at one time. In effect, there are two independent switches on a single DPDT relay.
About ProXR
If you are new to our products, we would like to introduce to you is a term we call "ProXR". ProXR refers to a set of standardized commands used for computer control and data collection. A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility. This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software. ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Wireless ZigBee, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer. Let ProXR controllers manage the rest.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
UXP Expansion Port
This board is equipped with a UXP Expansion port which allows you to add add capabilities beyond basic relay control to your application specifically for the purpose of speaking to various expansion modules. Where the XR Expansion port allows you to add additional relays to the board, the UXP Expansion Port allows you to add functionality to the board. With the UXP Expansion Port you can add Digital Potentiometers, Contact Closure modules and Analog to Digital Expansion Modules to this board.
WiFi control with a Web Browser
NCD Currently offers 2 variations of the Ethernet Modules. The .NET with Web-Browser interface is also available..NET is our own breed of Network Communications. .NET is an Open-Source project that offers a powerful web-browser interface for direct control of relays from a web-page served directly to users from the .NET module, without the need for a server. .NET is accessible from anywhere on your local area network. If you have a static IP address, .NET is accessible from anywhere in the world. In addition to a web browser relay control interface, .NET devices also allow you to control the device from your own software through direct TCP/IP communications while still hosting a web browser interface. Write software that directly accesses the controller or access the control from your web browser. .NET also supports a simultaneous connection to SignalSwitch.com, allowing you to control the .NET from our server, your program, or your web browser...all at the same time. As an Open-Source project, you can customize the interface as needed using .NET development tools. Use the chart below to compare features of the ZETH-ME and ZETH-NET Ethernet Modules. This board can be upgraded with the .NET module upon checkout.
| Feature Comparison: | ME Firmware | .NET Firmware |
| Supports Virtual COM Port over Ethernet | YES | - |
| Supports Direct TCP/IP Communications | YES | YES |
| Supports Direct Connection to SignalSwitch.com | YES | YES |
| Supports Multiple Communication Methods (Above) Simultaneously |
- | YES |
| Supports Direct Internet Access Without a Server (requires static IP) |
- | YES |
| Includes Extensive Network Configuration Options | YES | - |
| Web-Browser Interface for ProXR Series Controllers | - | YES |
| Web-Browser Interface for Reactor Series Controllers | - | YES |
| Web-Browser Interface for Taralist Series Controllers | - | YES |
| Web-Browser Interface for Network Configuration | YES | YES |
| Supports DHCP | YES | YES |
| Supports Fixed IP Address | YES | NO |
| Password Protection | YES | YES |
| Open-Source User-Upgradeable (requires development software) | - | YES |
Resources
 |
NEW TO Wi-Fi COMMUNICATIONS? GET STARTED HERE Click the above link for an exclusive article on Wi-Fi Communications |
| Wi-Fi Relay Article | Wi-Fi Article |
| ProXR Manual | ProXR Manual |
| Netgear WNCE2001 Manual | Netgear WNCE2001 Manual |
| Netgear Install Guide | Netgear Install Guide |
| Network Drivers | Network Drivers |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

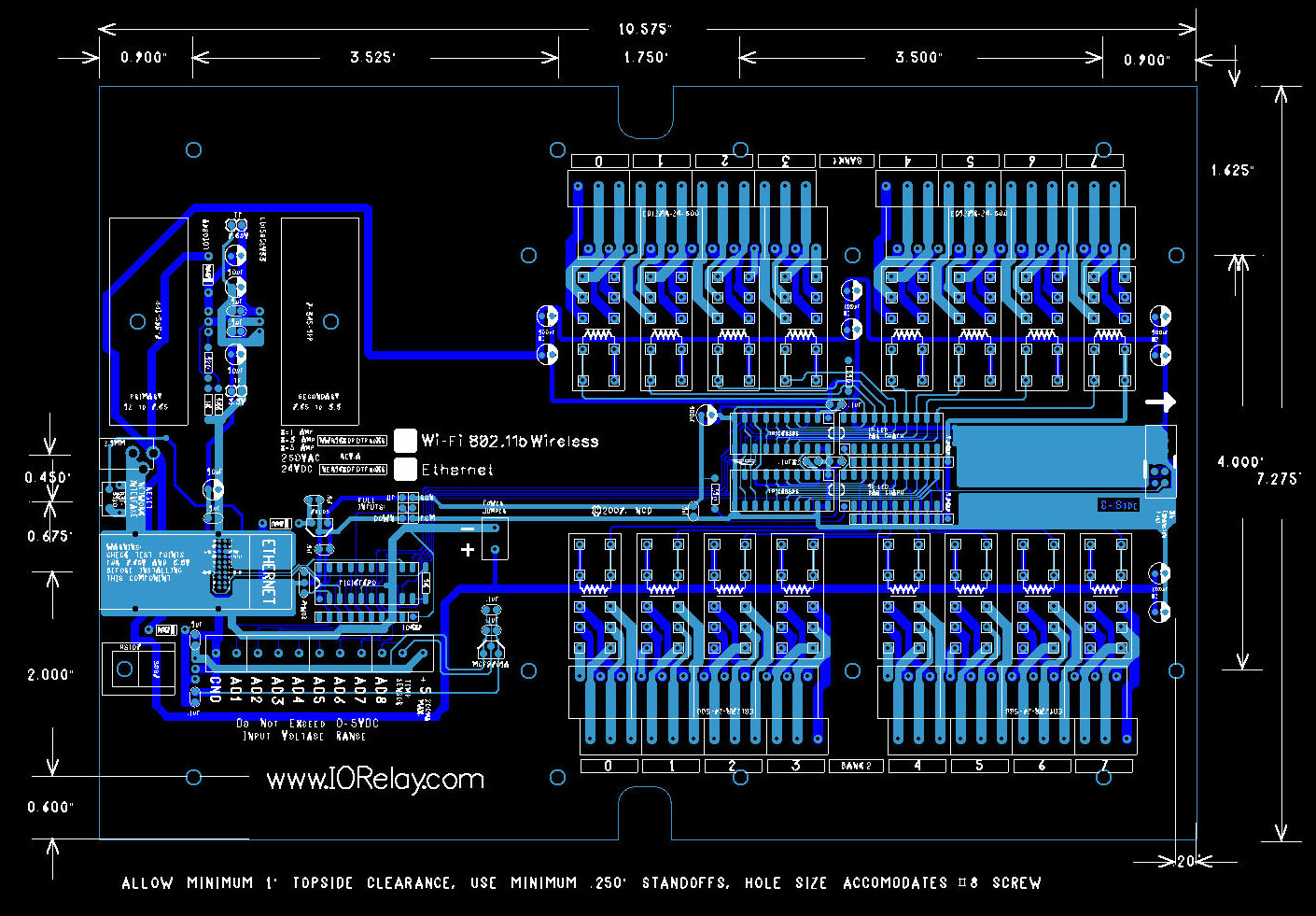

| Mechanical Drawing | Mechanical Drawing for this board |
Discontinued - This item has been replaced by a new Item, see product description for details | |
|
Quantity in Basket:
None
Code: NEUXPR165DPDTPROXR_WIFI Price: $615.00 Shipping Weight: 3.50 pounds | |
| Discontinued - This item has been replaced by a new Item, see product description for details | |
