Product Discontinued
This product has been replaced by ZADSSR8xPROXR_ZETH-ME_WIFI_MIX
WiFi Relay with Standard Ethernet Firmware
Discontinued - This item has been replaced by a new Item, see product description for details
Product Code: NEADSSR8xPROXR_MIX_WIFI
Control this Device Over the Internet
Signal Switch Compatible
Discontinued - This item has been replaced by a new Item, see product description for details

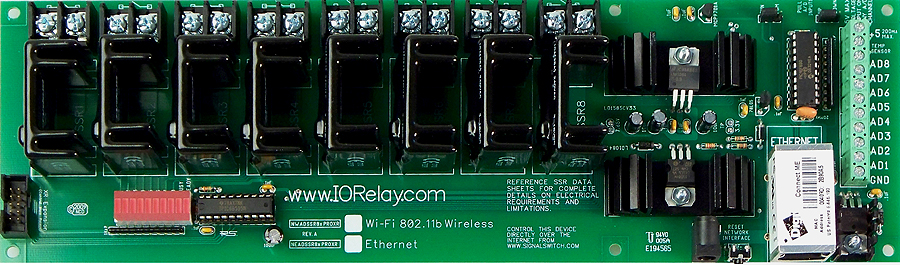

$418.00/eaOnce the Netgear WNCE2001 is configured to talk to your network simply connect it to the Ethernet Port of the NEADSSR8xPROXR_MIX_WIFI and power up the device. In no time you'll be talking to the board. Eight Analog to digital inputs are located on the right side of board. Add Relay Expansion Boards to the XR Expansion Port located on the left side of board.
Wi-Fi ME with A/D at a Glance
- Includes Netgear WNCE2001 Universal Wi-Fi Adapter
- Supports Virtual COM Port over Ethernet
- Supports Direct TCP/IP Communications
- Supports Direct Connection to SignalSwitch.com
- Includes Extensive Network Configuration Options
- Supports DHCP
- Web-Browser Interface for Network Configuration
- Supports Fixed IP Address
- Password Protection
- Offers 100% Emulation of ProXR AD8 Firmware
- 8-Channel of 8/10-Bit Analog to Digital Conversion
Video Resources
(Select a thumbnail to view the video)Introduction to Ethernet
Learn about Ethernet Communications and how it is utilized by our Relay Controllers
Ethernet Setup
Watch as we show you how to Set Up the Hardware and explain your options for the Software necessary to Communicate to your Controller
Web-i Introduction
Get started with Web Control
Virtual Serial Port Setup
Learn how to use Digi Realport to Set Up a Virtual Com Port to communicate to your Networking Relay Controller
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
NEADSSR8xPROXR_MIX_WIFI
| Ratings | AC | DC |
|---|---|---|
| Voltage | 240 | 24 |
| Amperage | Optional | Optional |
|
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: NEADSSR8xPROXR_MIX_WIFI | $418.00 |
Related Products:
NEUXPSSR8xPROXR_WIFI
 |
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: NEUXPSSR8xPROXR_WIFI | $428.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
WiFi Relay with ME Firmware and A/D Conversion
Uses Digi Stock Digi Connect ME firmware and Wireless Adapter
Read Voltage Levels From 0-5 Volts with Analog to Digital Conversion
Wi-Fi Wireless Control with All the Benefits of the ME Ethernet Firmware!
Easy Security Configuration
NCD Wi-Fi relay controllers offer a powerful and easy to use wireless solution for relay control. As many of our customers already know, working with Wi-Fi devices can be challenging because they must be associated to a wireless network, and must be configured with security protocols. By combining a Netgear WNCE2001 Ethernet to Wi-Fi adapter to our standard Ethernet controllers, we can circumvent all of the problems with working with Wi-Fi at a more reasonable price than working with any available embedded Wi-Fi solution.
WiFi Network Adapter
When you purchase this Wi-Fi relay controller we have bundled a Netgear WNCE2001 Ethernet to Wi-Fi adapter with the Ethernet controller for your convenience. The Netgear WNCE2001 Wi-Fi Adapter allows you to take this Ethernet enabled controller and use it wirelessly to connect to a network. The Netgear WNCE2001 is perfectly suited for use with Ethernet devices offering 100% compatibility and easy setup. Configure the WNCE2001 to your wireless network then simply plug it into the Ethernet port of this device. We have tested a couple of different Wi-Fi to Ethernet solutions and the Netgear Universal Wireless Internet Adapter really is the best solution for ease of setup and compatibility with these controllers. If you would like to purchase your own Wi-Fi adapter simply purchase one of our Ethernet controllers found on the left navigation.
Simply configure the Netgear WNCE2001 Wi-Fi Adapter to your existing network and then connect it to your Ethernet device. It's that simple and we'll show you how in the above video.
Two Ethernet Modules Available |
|||
 |
 |
||
ME Firmware |
.NET Firmware |
||
Ethernet Network Module
This Ethernet relay controller is based on the Digi Connect ME Ethernet communications module. This is a great low-cost solution that has empowered our users since 2005. The Digi Connect ME firmware allows you to login to the device and setup powerful network communication options. Though it does not offer a web browser interface for relay/device control, it does offer many powerful connectivity options for advanced networks at a very low cost. ME Firmware supports Virtual COM Port Ethernet Communications, Direct TCP/IP communications, or direct communication to SignalSwitch.com. ME Firmware is capable of handling only one of these communication options at a time however.Easy Software Development
RealPort Virtual COM Port drivers map a Network IP address to a COM port on your network...allowing you to control this device as though it were directly connected to a serial port on your PC. So network control is now as easy as speaking to a COM port on your local computer....except this device works over the network. This device also supports Telnet and Data Encryption with Password Protection. This device includes a Digi Connect ME Ethernet Interface and Embedded Web Server from www.digi.com.Many Communication Protocols for Advanced Users
Advanced users may want to employ other communication protocols to speak the the Ethernet Relay Controller. NCD Ethernet Relay Controllers can also be controlled using Telnet. I.P. Addresses and are automatically or manually assigned. NCD Ethernet Relay Controllers also support security protocols such as Shared Key, WEP, WPA, and Cisco LEAP with support for WEP, TKIP, and CCMP data encryption.Solid State: A Practical Alternative to Mechanical Relays!
Mechanical Relays have a good home in low-cost control applications. But for some users, only solid state switching will do. Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance. Many inductive control applications require a solid state relay. Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.
About ProXR
If you are new to our products, we would like to introduce to you is a term we call "ProXR". ProXR refers to a set of standardized commands used for computer control and data collection. A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility. This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software. ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Wireless ZigBee, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer. Let ProXR controllers manage the rest.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.
Read More About Analog to Digital Conversion
WiFi control with a Web Browser
NCD Currently offers 2 variations of the Ethernet Modules. The .NET with Web-Browser interface is also available..NET is our own breed of Network Communications. .NET is an Open-Source project that offers a powerful web-browser interface for direct control of relays from a web-page served directly to users from the .NET module, without the need for a server. .NET is accessible from anywhere on your local area network. If you have a static IP address, .NET is accessible from anywhere in the world. In addition to a web browser relay control interface, .NET devices also allow you to control the device from your own software through direct TCP/IP communications while still hosting a web browser interface. Write software that directly accesses the controller or access the control from your web browser. .NET also supports a simultaneous connection to SignalSwitch.com, allowing you to control the .NET from our server, your program, or your web browser...all at the same time. As an Open-Source project, you can customize the interface as needed using .NET development tools. Use the chart below to compare features of the ZETH-ME and ZETH-NET Ethernet Modules. This board can be upgraded with the .NET module upon checkout.
| Feature Comparison: | ME Firmware | .NET Firmware |
| Supports Virtual COM Port over Ethernet | YES | - |
| Supports Direct TCP/IP Communications | YES | YES |
| Supports Direct Connection to SignalSwitch.com | YES | YES |
| Supports Multiple Communication Methods (Above) Simultaneously |
- | YES |
| Supports Direct Internet Access Without a Server (requires static IP) |
- | YES |
| Includes Extensive Network Configuration Options | YES | - |
| Web-Browser Interface for ProXR Series Controllers | - | YES |
| Web-Browser Interface for Reactor Series Controllers | - | YES |
| Web-Browser Interface for Taralist Series Controllers | - | YES |
| Web-Browser Interface for Network Configuration | YES | YES |
| Supports DHCP | YES | YES |
| Supports Fixed IP Address | YES | NO |
| Password Protection | YES | YES |
| Open-Source User-Upgradeable (requires development software) | - | YES |
Resources
 |
NEW TO Wi-Fi COMMUNICATIONS? GET STARTED HERE Click the above link for an exclusive article on Wi-Fi Communications |
| Wi-Fi Relay Article | Wi-Fi Article |
| ProXR Manual | ProXR Manual |
| Netgear WNCE2001 Manual | Netgear WNCE2001 Manual |
| Netgear Install Guide | Netgear Install Guide |
| Network Drivers | Network Drivers |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

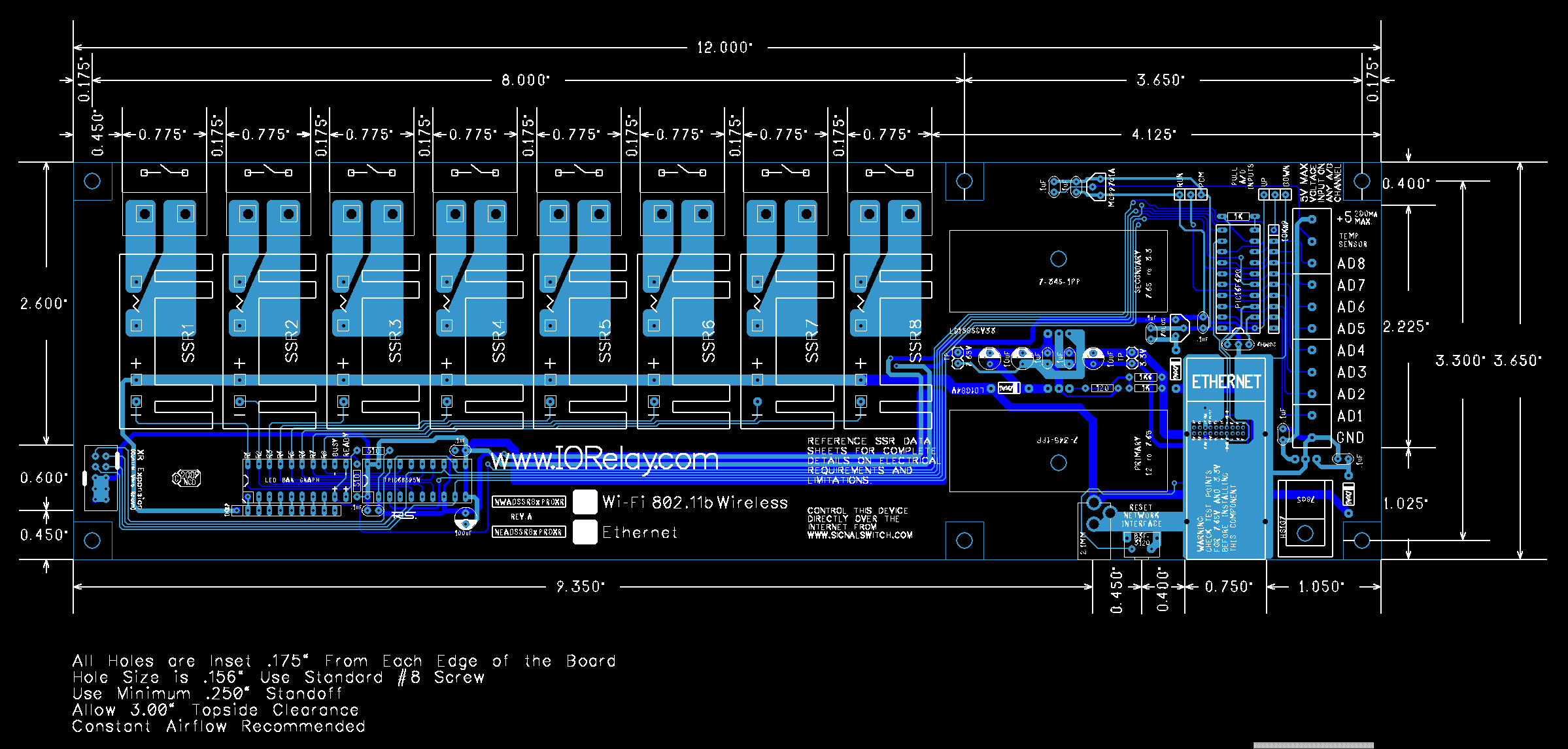

| Mechanical Drawing | Mechanical Drawing for this board |
Choose a Solid State Relay for This Controller: |
|||
|
Crydom |
 |
2A 240VAC Normally Open SPST Zero Crossing Turn On Built-In Snubber Circuit For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature D2W Series Data Sheet |
$12.00/each |
|
Crydom |
 |
5A 240VAC Normally Open SPST |
$15.00/each |
|
Crydom |
 |
5A 240VAC Normally Open SPST |
$16.00/each |
|
Crydom |
 |
25A 240VAC Normally Open SPST Random Turn On For Use with Inductive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$28/each |
|
Crydom |
 |
25A 480VAC Normally Open SPST Zero Crossing Turn On For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$30/each |
|
Crydom |
|
3A 60VDC Normally Open SPST For Use with Resistive or Inductive Loads DC Switching ONLY .02A Minimum Load Required 1.5V Maximum On-State Voltage Drop -40 to 80°C Operating Temperature PF Series Data Sheet DC Solid State Connection Diagram |
$24/each |
| NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com. | |||
