National Control Devices: NCD220 Bitabug3 E3C Compliant

NCD-220Bitabug3 E3C Compliant

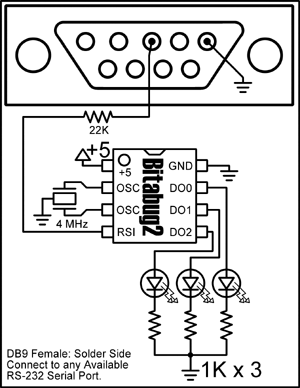

Bitabug2 Shown, Schematic Same as Bitabug3.

NCD-220

Bitabug3 is a 8-pin preprogrammed microcontroller based on the PIC12C671/672 core, and is available in DIP and SOIC packages. Bitabug3 was designed to provide 3 TTL outputs from an RS-232 serial port. Bitabug3 is an enhancement ofBitabug2 by adding E3C compliance, allowing 256 devices to share a single RS-232 serial port. Bitabug3 does not act as a 3-bit serial to parallel converter like the Bitabug2. Instead, output lines are completely command driven using simpleE3C structured commands. Unlike the Bitabug2, Bitabug3 uses a command set for controlling each output individually orall outputs simultaneously. A customer-selected E3C device number of 0-255 must be programmed into the chip at thetime of purchase.

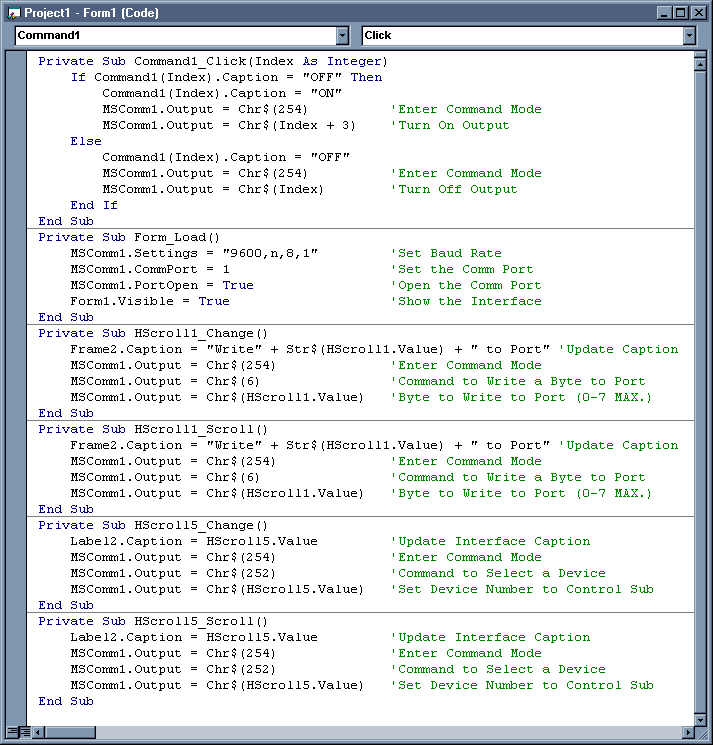

Visual Basic Example Screenshot and Source Code:

NCD220 Bitabug3 E3C Compliant

Quantity in Basket: None
Code: NCD220
Price: $10.00
Shipping Weight: 0.01 pounds

This Item is Lead-Free RoHS Compliant

Package:

Resonator:

E3C Device Number (0-255):

Quantity:

NCD220 Bitabug3 E3C Compliant
