Product Code: MirCSSR2x_MIX
The MirC Series Relay Controllers are ready to go to work immediately out of the box. No computers, no configuration, just simple, reliable wireless communications between two devices that permanently work together as a married pair. The MirC offers contact closure on the sender board, this will trigger the relay on the receiver board.
| The PWR12 is regulated power supply providing clean power necessary for the performance of these boards | |
| Stock#: PWR12 | $48/pr |

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!



No Computers, No Configuration - Works Right Out of the Box
Contact Closure Inputs Control Relays in a Remote Location - Wirelessly
Reliable Communications Between Two Devices That are a Married Pair
MirC controllers allow contact closure inputs to control contact closure outputs in a remote location using wireless 2-way communications. The sending device is equipped with contact closure inputs, used to control relays on the remote device. Both sender and relay controller are included when you purchase a MirC pair.
The sending device is also equipped with LEDs that display the status of the remote relay. Status information is verified using 2-way wireless communications. If communication is lost between the remote relay and the sending device, the sending device will turn off the LED. Additionally, every MirC controller is equipped with a Busy/Ready LED. If the Busy LED flashes, this indicates the remote device has successfully received and accepted your contact closure status. If the Busy LED does not flash, the remote device is out of range.
The Receiving MirC relay controller has two modes of operation: Beacon and Smart
The distance between MirC controllers will affect reliable operation. MirC controllers will offer better range if two MirC controllers are within line of sight of each other. If it is not possible for 2 MirC controllers to see each other, more expensive communications options will improve working distance for most users. You can expect MirC devices to function properly in most applications between 300 feet and up to 15 miles depending on communications module and antenna options chosen. MirC controllers are available with 3 options. The default option is the "Standard Range", which operates up to 300 feet and includes a small integrated antenna that cannot be moved or positioned. The "Mile Range" Option offers communication between devices up to 1 mile apart (line of sight) and includes a small external antenna. The "15-Mile Range" Option operates up to 15 miles (line of sight) between controllers. This is our most expensive option, which includes TWO Roof Mount antennas, 20 Feet of Cable for Each Antenna, and 2 cable adapters. Hills, Trees, and Buildings will greatly reduce communication range of all wireless devices, so practical distances may be less.
Beacon Mode provides a very fast communication back to the MirC Sender, indicating relay status. The drawback to this mode is that it generates more radio traffic, so it consumes more power. However, relay status information is displayed on the sender in one second or less. In beacon mode, the relay status will not change if communications is lost between the relay controller and the sender.
Smart mode waits for the next communication cycle to report the status of the relay. Relay status information will be available to the sender device within 3 seconds. This mode consumes less power and generates far less radio traffic. Smart mode is recommended for most applications if you can tolerate a 3 second delay. In smart mode, the relay will turn itself off automatically if communications is lost between the relay controller and the sender.
MirC devices are only sold as a permanently married pair, pricing shown on our web site indicates pricing for the pair of controllers. Contact Closure Inputs may only be connected to switches, buttons, or sensors with Contact Closure capability. Not suitable for use in voltage detection applications. MirC devices use 802.15.4 two-way communications to ensure the remote device is properly functioning. The Busy LED is always used to indicate a properly functioning remote device. If you do not see the Busy LED flash, then the MirC controller is unable to communicate to the remote device. A flashing busy LED is your verification that all communications are functioning properly between MirC controllers.
Customers who require inductive switching (such as motors, lights, pumps, solenoids, and Transformers) should visit the Induction Suppression portion of our web site.
NCD Currently offers 2 variations of this design: MirC and MirX.
MirC: Transmitter Controller and Receiver Controller. The Transmitter Shows the Status of Relays on Receiver Controller. The Transmitter is equipped with Contact Closure Inputs and Remote Relay Status LEDs. The Receiver is equipped with Relays and Relay Status LEDs.
MirX: Each Controller is a Transmitter and a Receiver. The Inputs on One Controller control the Relays on the Opposite Controller. Relay Status is Shown using LEDs on Each controller.

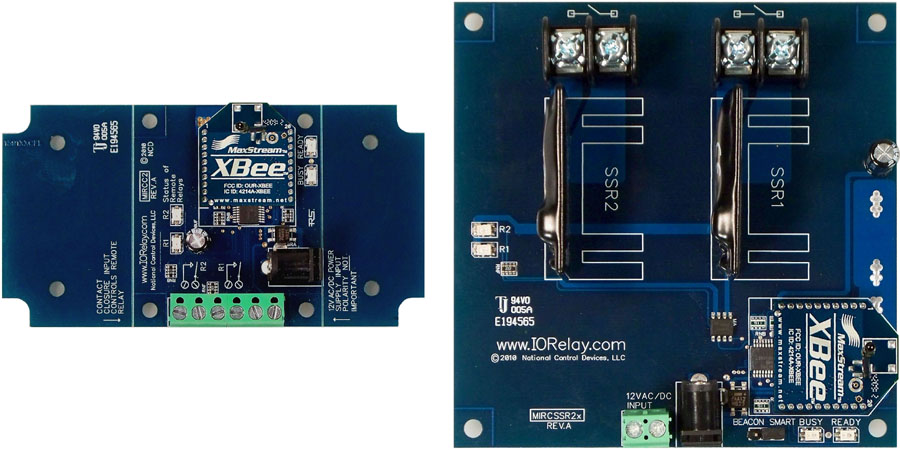

MirC controllers include two circuit boards. The "Local" and "Remote" circuit boards work together to control relays at the remote location from the controller in the Local location. The Local Circuit board has contact closure inputs. When an input change is detected on the Local circuit board, the relay is changed on the Remote circuit board. The Remote Circuit board sends feedback to the Local controller. The LEDs on the Local controller display the status of the relays in the Remote location based on 2-way communications. If communications is lost between the devices, the Remote relay will turn off (If set to Smart Mode). The relay status LED on the Local controller will also turn off. The Remote relay controller is also equipped with LEDs to show the status of the relays. Relay status can be seen on BOTH controllers.
MirX controllers also include two circuit boards. Each controller is a Transmitter and a Receiver, each controller is equipped with contact closure inputs and relays. The local contact closure inputs control the relays at the remote location and vice versa. The LEDs on each controller display the status of the relays ONLY.
Please Note: Users must NEVER apply any voltage to an input on the Mir-C controller, these inputs are for Contact Closure connections only.
Please Note: Relays do NOT provide a voltage output. They provide a contact closure output, exactly like the terminals found on a light switch at your local hardware store. Wiring to a relay will be slightly different depending on the model controller you choose.
For wiring information see our Relay Logic page.
| MirC Quick Start Guide | Download the MirC Quick Start Guide for Wireless |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |
Choose a Solid State Relay for This Controller: |
|||
|
Crydom |
![]() |
2A 240VAC Normally Open SPST Zero Crossing Turn On Built-In Snubber Circuit For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature D2W Series Data Sheet |
$12.00/each |
|
Crydom |
![]() |
5A 240VAC Normally Open SPST |
$15.00/each |
|
Crydom |
![]() |
5A 240VAC Normally Open SPST |
$16.00/each |
|
Crydom |
![]() |
25A 240VAC Normally Open SPST Random Turn On For Use with Inductive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$28/each |
|
Crydom |
![]() |
25A 480VAC Normally Open SPST Zero Crossing Turn On For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$30/each |
|
Crydom |
![]() |
3A 60VDC Normally Open SPST For Use with Resistive or Inductive Loads DC Switching ONLY .02A Minimum Load Required 1.5V Maximum On-State Voltage Drop -40 to 80°C Operating Temperature PF Series Data Sheet DC Solid State Connection Diagram |
$24/each |
TYPE G - 45 Day Lead TimeCrydom |
![]() |
20A 60VDC Normally Open SPST For Use with Resistive or Inductive Loads DC Switching ONLY No Minimum Load Required .1V Maximum On-State Voltage Drop -30 to 80°C Operating Temperature CX Series Data Sheet |
$65/each |
| NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com. | |||
2-Way Wireless Pair with 2 Contact Closure Sender and Receiver with 2 Mixed Solid State State Relays | |
|
Quantity in Basket:
None
Code: MirCSSR2x_MIX Price: $170.00 Shipping Weight: 2.00 pounds | |
| 2-Way Wireless Pair with 2 Contact Closure Sender and Receiver with 2 Mixed Solid State State Relays | |
