National Control Devices: 32-Channel Mirror Module with RS-232

MIR32ESENC 32-Channel Mirror Module with RS-232

Contact Closure Inputs on One Side, Contact Closure Outputs on the Other Side

*RESOURCES:*
	NEW TO MIRROR MODULES? GET STARTED HERE Click the above link for an exclusive article on Mirror Modules
		Download Refractor, the Mirror Module Configuration Utility
		Download the Universal Device Manual Covering the Mirror Module Series Controllers

Now Shipping Firmware Version 2.0, Release Date August 22, 2005.

Simple GUI Interface for Configuration using our 'Refractor" Configuration Utility

Compatible with ALL NCD Relay Controllers with an RS-232 Interface

Expandable to 256 Inputs, Capable of Controlling up to 256 Remote Relays

Analog Modes Allow Interface to Light Sensor, Temperature Sensors

Motion Mode Activates Lights in a Remote Location, Directly Compatible with ALL Motion Detectors

Permanent Non-Volatile Configuration Setup 1 Time and Forget It Forever!

Works with RS-232 Relay Controllers

Programmable Baud Rate for Universal Compatibility and Speed

Connects Directly to a PC for Remote Monitoring of Contact Closure Inputs

Optional Enclosure Available

Requires QS12 Quick Start Kit
for Initial Configuration

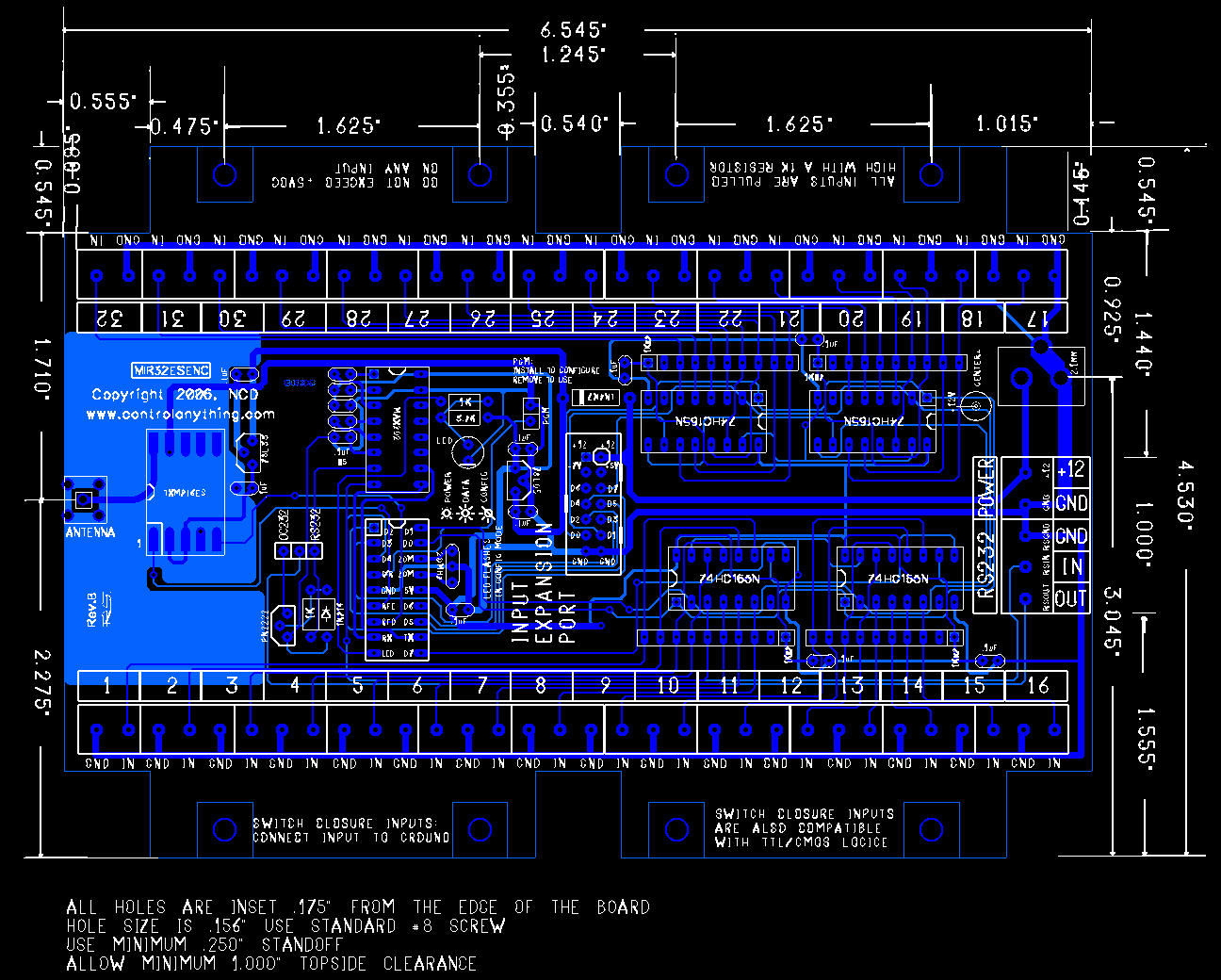

MECHANICAL DRAWING

Mirror Modules: Take the Computer Out of Computer Control Forever!!!

	32-Channel Contact Closure Inputs Wireless ES and RS232 Communications
*Stock #: MIR32ESENC*
1-9	$142/ea
(click picture above to enlarge)

Mirror Modules will change the way you look at computer control FOREVER. If you like our products, but don't want to use a computer to control them, then consider using a Mirror Module instead of a computer!

Mirror Modules have many features, but their primary function is to act as a remote control for our extensive line of relay controllers.

Mirror Modules have built-in contact closure inputs. When these inputs are connected together, the Mirror Module generates control commands used to activate relays in a remote location.

Mirror Modules are compatible with ALL NCD relay controllers.

MIR32ESENC:

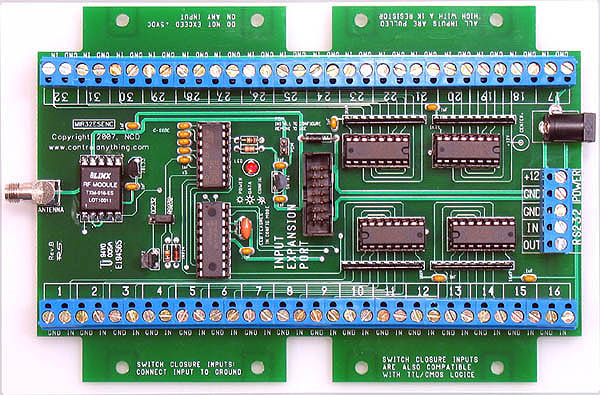

The device shown above is the MIR32ESENC version of the Mirror Module. It is ideal for controlling any of our RS-232 relay controllers. This device, by itself, it capable of controlling up to 32 relays via an RS-232 serial connection up to 1,000 feet away using only 2 wires between the Mirror Module and the Remote Relay Controller.

All Mirror Modules include an expansion port, allowing you to connect additional contact closure inputs for controlling larger relays controllers, up to 256 input/relay control total capacity.

Other versions of the Mirror Module are also available. Optional Enclosure Also Available. Compatible with ALL NCD RS-232 Relay Controllers. QS12 Quick Start Kit is REQUIRED for Initial Configuration. Requires Windows XP Home, Professional, Vista or Later Operating Systems. TO SEE OTHER PRODUCT OPTIONS, PLEASE SCROLL DOWN.

Should you have any questions, please contact us.

National Control Devices, LLC

www.controlanything.com

Since October, 1995

32-Channel Mirror Module with RS-232

Quantity in Basket: None
Code: MIR32ESENC
Price: $142.00
Shipping Weight: 1.00 pounds

Enclosure:


Quick Start Kit:


Power Supply:

Quantity:

32-Channel Mirror Module with RS-232

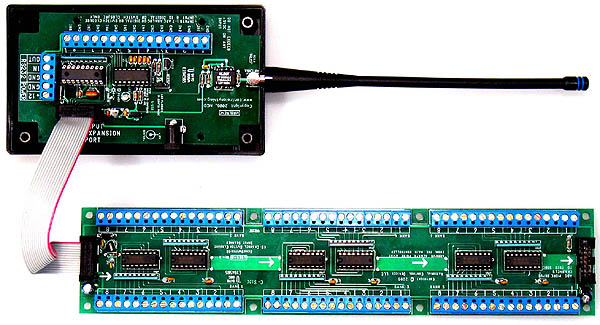

Mirror Modules are Expandable to 256 Inputs, allowing you to remotely control up to 256 relays!!! An enclosure is also available for the complete line of Mirror Modules.

Getting Started with Mirror Modules

It all starts with Refractor, our free software that allows you to configure the Mirror Module to communicate to a remote device. Refractor tries to establish communications with the Mirror Module as soon as it is started. Upon successful communications, a screen very similar to the one shown below appears. The screen will be customized for the options that apply to your specific Mirror Module.

Simply choose the model of relay controller you plan to communicate with, and all the applicable options. The help box (shown at the bottom of this window) changes as you move your mouse pointer over the different buttons, explaining what every option does.

The A/D functions shown below allow you to read voltages on 7 of the 8 input channels (available on Mirror Modules with 8 Input Channels ONLY). You can activate relays when voltages fall inside our outside the preset limits. Once you have configured the Mirror Module for your application, you can store the configuration. The Test Configuration allows you to immediately test the Mirror Module settings.

Once you have verified all settings are correct, you will be controlling relays WITHOUT a computer.
