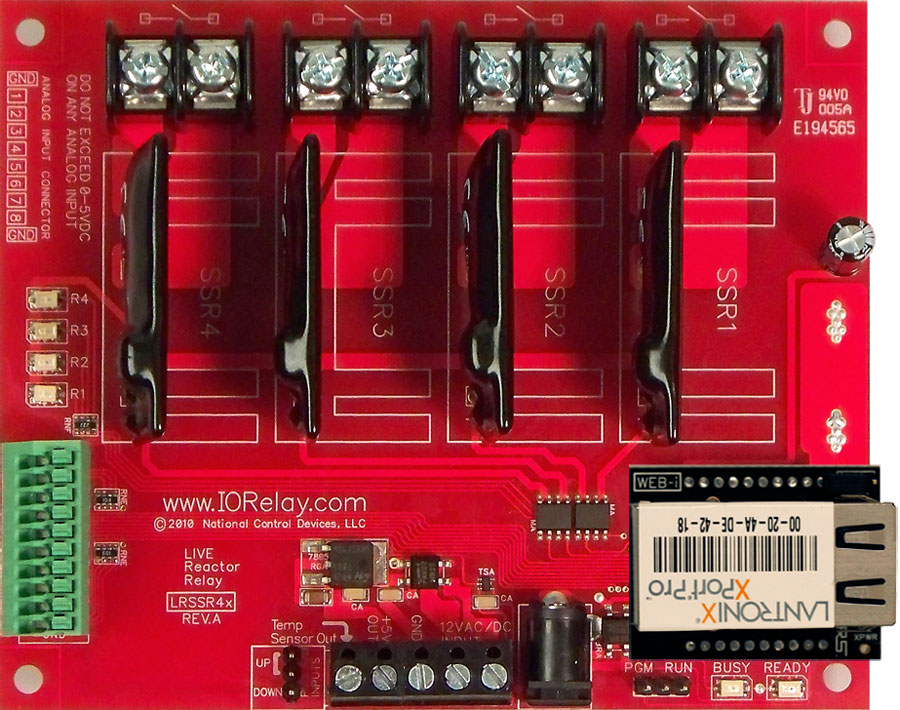

LRSSR4x_Web-i_MIX Reactor Relay

Web-i Reactor Relay 4-Channel Solid State Mix + 8-Channel 8-Bit A/D Controlled by Web

Reactor Relay Controller
Computer Controlled Switching without the Computer!
Reactor controllers trigger relays automatically based on inputs.  Connect sensors and setup relay activation functions using our NCD Configuration Utility Software.  Once configured, Reactor Controllers work with or without a computer!
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

Web-i Reactor Relay 4-Channel Solid State Mix + 8-Channel 8-Bit A/D Controlled by Web

$307.00/ea


Reactor Web-i at a Glance

  • 8 Analog Inputs Trigger Relays Based on User Configuration
  • Internet or LAN Controlled Web Relays
  • Bookmark the Browser Interface from your phone to run it like an App
  • 8 Background Timers Offer Timed Relay Switching Functions
  • 4 Rotation Counters Trigger Relays Based on Counting Values
  • Take Manual Control of the Reactor Logic or to Return Control to Stand-Alone Operation
  • Supports Multiple Communication Methods Simultaneously
  • Supports Direct Internet Access Without a Server
  • Supports Direct Connection to SignalSwitch.com
  • Includes Extensive Network Configuration Options
  • Supports DHCP and Static IP Address
  • Password Protection

Resources:

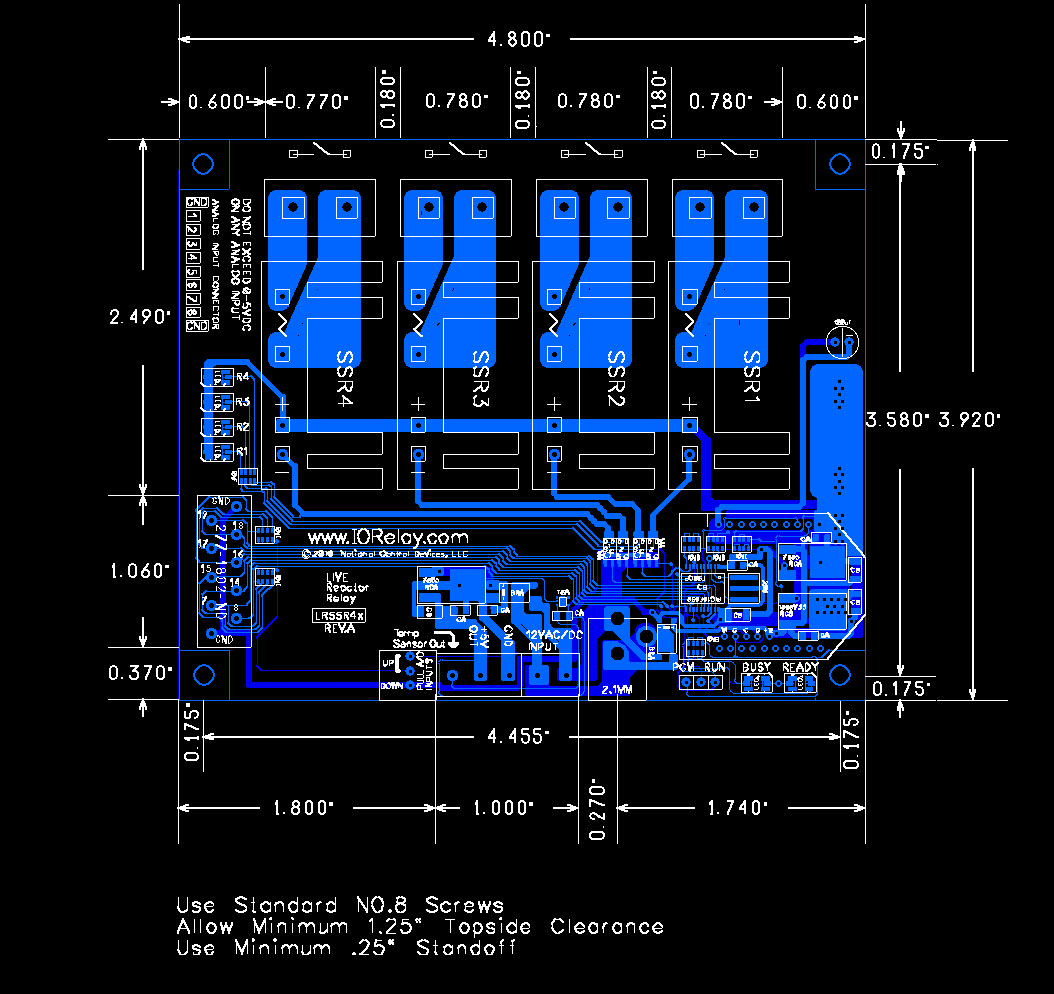

NCD Base Station Software Reactor Quick Start Guide Reactor Packages Sensors and Accessories NCD Component Library Wiring Diagrams Mechanical Drawing

This Product:

LRSSR4x_Web-i_MIX
Ratings AC DC
Voltage 240 24
Amperage Optional Optional
Reactor Relay
 Web-i Reactor Relay 4-Channel Solid State Mix + 8-Channel 8-Bit A/D Controlled by Web
Stock#: LRSSR4x_Web-i_MIX
1-9 $307.00

Related Products:

LRSSR4x_Web-i
Reactor Relay
 Web-i Reactor Relay 4-Channel Solid State + 8-Channel 8-Bit A/D Controlled by Web
Stock#: LRSSR4x_Web-i
1-9 $307.00

Desktop Control

N-Button Lite
Desktop Control & Monitoring
Control Relays without any programming!
 N-Button creates up to 8 desktop widgets to control relays without any programming.

Order Today with This Board for Only $29
Stock#: N-Button Lite $49.00


Power Supply Available

PWR12 Power Supply
 The PWR12 is regulated power supply providing clean power necessary for the performance of these boards
Stock#: PWR12 $24/ea


Questions?

AccessNCD

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
Credit Cards Accepted
PayPal Accepted
Google Checkout Enabled
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

Reactor Relay Control with Internet Control

Sensor Controlled Relays Expand Automation WITHOUT Programming!

Now Take manual control from ANYWHERE!

Control this Device Remotely from Anywhere in the World

Intelligent Switching without a Computer is the foundation of the Reactor Series relay controllers. The Reactor Series will help you activate a switch when it gets dark outside. If the door has been left open, it will close automatically. When the temperature falls, another switch is triggered. If motion is detected, a light will turn on for a preset time. When soil in the ground is too dry, a switch will be activated that can save your crops, save your energy, save you a trip to the field, and save you money.

With the addition of a Web-i Module you can take manual control of your Relays or check the status of your Inputs from anywhere in the world using a simple Web Browser. All this without any need for Programming.

You can Demo This Interface Now at http://www.signalswitch.com:8088/ and control a Live Board here in our office.

Control this Device from a Local Area Network

This device can also be controlled over a Local Area Network. You may need to log into your router to find the IP address. Take note of the MAC address printed on the top of the Web-icontroller. Your router will display a list of IP addresses and associated MAC addresses. Take note of the IP address that matches the printed MAC address on your controller. Open any web browser and type the IP address into the URL.

Autonomous and Computer Control...from Anywhere!

If you need to read a sensor from anywhere in the world, or control a switch from a distant location, the Reactor Series relay controllers will take control while you are away and give you worldwide access using our Free SignalSwitch.com. Ten Reactor Controllers is all you need to completely automate a large house. You don't need to be a programmer any more. Things have changed. There is a new way to bring the power of automation (once reserved for master programmers) to the average person who possesses basic computer skills. The Reactor Series relay controllers represent an entirely new technology, a new step forward, designed for the real world in mind.

Configure to Your Needs

The Reactor controller must be configured using a computer and the included software. All decisions are made based on your configuration settings. Configuration settings are created and loaded into the Reactor controller using the NCD Configuration Utility. The Reactor is usually configured using a USB communications module, but may be configured wirelessly. Configuration is a simple Point and Click process, setting parameters to activate relays with user-defined limits.

Once configured, the Reactor CPU is constantly monitoring external sensors using 8 analog inputs. Inputs can be configured to trigger relays, relay timers and relay activation sequences. Complex events can also be configured without any programming. Use the Reactor as a Thermostat, a Motion Activated Light with a Programmable Timer, an Automatic Garage Door Closer, and much more.

The Configuration utility is available as a free download.  See the resources section located on the right or at the bottom of the page.  You can also find more detailed information in the Manual available in the Resources section as well.

Who's Qualified to Use the Reactor Series?

Some computer skills required. The Reactor Relays do not require programming, simply configure the device with the included Configuration Utility.  While programming is not required and simple functions can be done rather easily with basic computer skills, complex events can be configured which will require some understanding and patience.

Sensors

The Reactor Controller has 8 Analog Inputs that can read switches, resistance changes, or voltages from 0 to 5VDC.  Higher or lower voltages will damage the Reactor, so care must be taken not to exceed these limits on the Reactor inputs.   We offer many sensors to help get you started, including Motion Detectors, temperature sensors, light sensors, and magnetic proximity sensors.  You can connect your own sensors to the Reactor if we don't offer what you are looking for.  The Reactor configuration will control how the sensor affects the Relay.

Configure Each Input

The Reactor Relay allows users to define the activation of a relay or an event based on the voltage readings of the analog inputs.  An input can trigger a relay directly or an input can trigger an event, such as a timer. If an input triggers a relay, the relay may turn on. If an input triggers a timer event, a timer may be started, but a relay may or may not be turned on based on how you have configured the controller (the time delay may be before the relay triggers).  Triggering an event does not mean you are triggering a relay, it just means you are triggering an internal function. Relays may be associated with this internal function to achieve a large number of possible operations.

Configuration Utility Input Input configuration tab of the included software - view entire screen shot.


Output Configuration

Reactor controllers have up to 8 relays available depending on the actual model selected. Each relay can be assigned to a different input or event.  In the example shown below, Relay 1 is Controlled by Input 1 directly.  Input 1 will turn Relay 1 ON. In order for Relay 1 to activate, it must meet the conditions of the Input 1 configuration using the settings on the Input Configuration tab (see above).

There are many ways to directly control a relay from an input. Relays 1-5 in the below example shows how inputs can turn relays on, off, toggle relay state, set the relay to match the state of the input, or set the relay to NOT equal the state of a input.

In the example below, Relay 6 is controlled by Timer 1. In other words, if Timer 1 is active, the relay will stay ON. Otherwise, the relay will turn off. This is a great way to activate a light for a given period of time. If you are interested in Time Delay Relay, timers will be discussed on our Time Delay Relay Page.

Relay Output Configuration The configuration software makes it easy to configure each relay.  Relays or multiple relays can be can be assigned to each input.


Removable Communication Module

Once configured, the Reactor controller can operate on its own, without a computer. The Reactor will never lose its settings. In fact, the communication module can be removed from the Reactor controller and used to configure another Reactor controller. This helps keep costs down. If you choose to leave the communication module installed on the Reactor, your computer can monitor inputs and relays, even take control of relays, and even use SignalSwitch.com to control the relays from anywhere in the world.

Computer Controlled Relays

Software developers who need remote access to a Reactor controller will find themselves at home. The Reactor supports a very powerful computer-based command set, so it is possible for a computer to operate the relays and read sensor input. The computer can over-ride the Reactor decision logic, trigger events, and return control of the relays back to the Reactor Logic. Configuration settings are stored in files that can be loaded into the Reactor controller.

Attention: 0 to 5 Volt Input Only

Please Note: Analog inputs can accept voltages from 0 to 5VDC ONLY.  Higher voltages and negative voltages will damage the Reactor controller.  Users must NEVER apply a voltage to an analog input on the Reactor controller when powered down.

Attention: ZUSB Communication Module

Please Note: All customers are STRONGLY ADVISED to purchase at least ONE USB Communication Module (Part Number ZUSB). This communication module may be used to recover a controller or to reconfigure a controller should there be an accidental loss of communications. NCD Tech support may be unable to assist customers who do not have a USB Communications Module available for troubleshooting purposes.


Choose a Solid State Relay for This Controller:

TYPE A

Crydom
D2W202F

SPST-NO

 2A 240VAC Normally Open SPST
Zero Crossing Turn On
Built-In Snubber Circuit
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
D2W Series Data Sheet		 $12.00/each

TYPE B

Crydom
CX240D5

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $15.00/each

TYPE C

Crydom
CX240D5R

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $16.00/each

TYPE D

Crydom
PF240D25R

SPST-NO

 25A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $28/each

TYPE E

Crydom
PF480D25

SPST-NO

 25A 480VAC Normally Open SPST
Zero Crossing Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $30/each

TYPE F

Crydom
MPDCD3

SPST-NO

 3A 60VDC Normally Open SPST
For Use with Resistive or Inductive Loads
DC Switching ONLY
.02A Minimum Load Required
1.5V Maximum On-State Voltage Drop
-40 to 80°C Operating Temperature
PF Series Data Sheet
DC Solid State Connection Diagram		 $24/each

TYPE G - 45 Day Lead Time

Crydom
CMX60D20

SPST-NO

 20A 60VDC Normally Open SPST
For Use with Resistive or Inductive Loads
DC Switching ONLY
No Minimum Load Required
.1V Maximum On-State Voltage Drop
-30 to 80°C Operating Temperature
CX Series Data Sheet
 $65/each
NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com.
