Product Discontinued
This product has been replaced by LRR820_WEB-I
Web Controlled Reactor Series Automated Relays
Discontinued - This item has been replaced by a new Item, see product description for details
Product Code: LRR820_ZETH-NET
Reactor controllers trigger relays automatically based on inputs. Connect sensors and setup relay activation functions using our NCD Configuration Utility Software. Once configured, Reactor Controllers work with or without a computer!
Control this Device Over the Internet
Signal Switch Compatible
Discontinued - This item has been replaced by a new Item, see product description for details
$397.00/eaThe Reactor Series Controllers are designed to use sensor inputs to detect changes and react to those changes according to user configured parameters.
Reactor -NET Series at a Glance
- 8 Analog Inputs Trigger Relays Based on User Configuration
- Internet or LAN Controlled Web Relays
- Bookmark the Browser Interface from your phone to run it like an App
- 8 Background Timers Offer Timed Relay Switching Functions
- 4 Rotation Counters Trigger Relays Based on Counting Values
- Take Manual Control of the Reactor Logic or to Return Control to Stand-Alone Operation
- Internet or LAN Controlled Web Relays
- Supports Multiple Communication Methods Simultaneously
- Supports Direct Internet Access Without a Server
- Supports Direct Connection to SignalSwitch.com
- Includes Extensive Network Configuration Options
- Supports DHCP IP Address
- Password Protection
from the browser of your phone or computer and run it like an application.
Video Resources
(Select a thumbnail to view the video)-NET Introduction
Learn about our Web Controlled Relays
Introduction to Reactor Relays
Part 1: An Overview of Reactor Series Relay Controllers
Understanding Inputs
Part 2: All about Reactor Series Controller Inputs
Understanding Events
Part 3: All about Reactor Series Controller Events
Understanding Outputs
Part 4: All about Reactor Series Controller Outputs
Configuration Utility
Part 5: Learn how to use the NCD Configuration Utility to Setup your Reactor Controller
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Resources:
This Product:
LRR820_ZETH-NET
| Ratings | AC | DC |
|---|---|---|
| Voltage | 240 | 24 |
| Amperage | 20 | 20 |
|
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: LRR820_ZETH-NET | |
| 1-9 | $397.00 |
Related Products:
LRR830_ZETH-NET
 |
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: LRR830_ZETH-NET | |
| 1-9 | $437.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
Reactor Relay Control with Internet Control
Sensor Controlled Relays Expand Automation WITHOUT Programming!
Now Take manual control from ANYWHERE!
Intelligent Switching without a Computer is the foundation of the Reactor Series relay controllers. The Reactor Series will help you activate a switch when it gets dark outside. If the door has been left open, it will close automatically. When the temperature falls, another switch is triggered. If motion is detected, a light will turn on for a preset time. When soil in the ground is too dry, a switch will be activated that can save your crops, save your energy, save you a trip to the field, and save you money.
Now with the addition of a ZETH-NET Module you can take manual control of your Relays or check the status of your Inputs from anywhere in the world using a simple Web Browser. All this without any need for Programming.
Autonomous and Computer Control...from Anywhere!
If you need to read a sensor from anywhere in the world, or control a switch from a distant location, the Reactor Series relay controllers will take control while you are away and give you worldwide access using our Free SignalSwitch.com. Ten Reactor Controllers is all you need to completely automate a large house. You don't need to be a programmer any more. Things have changed. There is a new way to bring the power of automation (once reserved for master programmers) to the average person who possesses basic computer skills. The Reactor Series relay controllers represent an entirely new technology, a new step forward, designed for the real world in mind.Configure to Your Needs
The Reactor controller must be configured using a computer and the included software. All decisions are made based on your configuration settings. Configuration settings are created and loaded into the Reactor controller using the NCD Configuration Utility. The Reactor is usually configured using a USB communications module, but may be configured wirelessly. Configuration is a simple Point and Click process, setting parameters to activate relays with user-defined limits.Once configured, the Reactor CPU is constantly monitoring external sensors using 8 analog inputs. Inputs can be configured to trigger relays, relay timers and relay activation sequences. Complex events can also be configured without any programming. Use the Reactor as a Thermostat, a Motion Activated Light with a Programmable Timer, an Automatic Garage Door Closer, and much more.
The Configuration utility is available as a free download. See the resources section located on the right or at the bottom of the page. You can also find more detailed information in the Manual available in the Resources section as well.
Who's Qualified to Use the Reactor Series?
Some computer skills required. The Reactor Relays do not require programming, simply configure the device with the included Configuration Utility. While programming is not required and simple functions can be done rather easily with basic computer skills, complex events can be configured which will require some understanding and patience.Sensors
The Reactor Controller has 8 Analog Inputs that can read switches, resistance changes, or voltages from 0 to 5VDC. Higher or lower voltages will damage the Reactor, so care must be taken not to exceed these limits on the Reactor inputs. We offer many sensors to help get you started, including Motion Detectors, temperature sensors, light sensors, and magnetic proximity sensors. You can connect your own sensors to the Reactor if we don't offer what you are looking for. The Reactor configuration will control how the sensor affects the Relay.Configure Each Input
The Reactor Relay allows users to define the activation of a relay or an event based on the voltage readings of the analog inputs. An input can trigger a relay directly or an input can trigger an event, such as a timer. If an input triggers a relay, the relay may turn on. If an input triggers a timer event, a timer may be started, but a relay may or may not be turned on based on how you have configured the controller (the time delay may be before the relay triggers). Triggering an event does not mean you are triggering a relay, it just means you are triggering an internal function. Relays may be associated with this internal function to achieve a large number of possible operations.)
Input configuration tab of the included software - view entire screen shot.
Output Configuration
Reactor controllers have up to 8 relays available depending on the actual model selected. Each relay can be assigned to a different input or event. In the example shown below, Relay 1 is Controlled by Input 1 directly. Input 1 will turn Relay 1 ON. In order for Relay 1 to activate, it must meet the conditions of the Input 1 configuration using the settings on the Input Configuration tab (see above).There are many ways to directly control a relay from an input. Relays 1-5 in the below example shows how inputs can turn relays on, off, toggle relay state, set the relay to match the state of the input, or set the relay to NOT equal the state of a input.
In the example below, Relay 6 is controlled by Timer 1. In other words, if Timer 1 is active, the relay will stay ON. Otherwise, the relay will turn off. This is a great way to activate a light for a given period of time. If you are interested in Time Delay Relay, timers will be discussed on our Time Delay Relay Page.
The configuration software makes it easy to configure each relay. Relays or multiple relays can be can be assigned to each input.
Removable Communication Module
Once configured, the Reactor controller can operate on its own, without a computer. The Reactor will never lose its settings. In fact, the communication module can be removed from the Reactor controller and used to configure another Reactor controller. This helps keep costs down. If you choose to leave the communication module installed on the Reactor, your computer can monitor inputs and relays, even take control of relays, and even use SignalSwitch.com to control the relays from anywhere in the world.Computer Controlled Relays
Software developers who need remote access to a Reactor controller will find themselves at home. The Reactor supports a very powerful computer-based command set, so it is possible for a computer to operate the relays and read sensor input. The computer can over-ride the Reactor decision logic, trigger events, and return control of the relays back to the Reactor Logic. Configuration settings are stored in files that can be loaded into the Reactor controller.Attention: 0 to 5 Volt Input Only
Please Note: Analog inputs can accept voltages from 0 to 5VDC ONLY. Higher voltages and negative voltages will damage the Reactor controller. Users must NEVER apply a voltage to an analog input on the Reactor controller when powered down.
Attention: ZUSB Communication Module
Please Note: All customers are STRONGLY ADVISED to purchase at least ONE USB Communication Module (Part Number ZUSB). This communication module may be used to recover a controller or to reconfigure a controller should there be an accidental loss of communications. NCD Tech support may be unable to assist customers who do not have a USB Communications Module available for troubleshooting purposes.
ZETH-NET Ethernet Communications
ZETH-NET uses Digi Stock Digi .Net Framework Communications Module Pre-Programmed with NCD-NET Firmware Allowing you to Control Anything from Anywhere with just the Internet and a Browser We have just taken Network Communications a Huge Step Forward!
Watch this Video and Check Out our Demo Page to Learn About this Powerful New Controller
ZETH-NET uses Digi .Net Framework Communications Module Pre-Programmed with NCD-NET Firmware, Allowing a Web Browser to Access and Control an NCD Device from a Local Network or the Internet using just a web browser. Go to our demo page and take control of one of our -NET controllers here in the offices of NCD from anywhere in the world.
Control this Device Remotely from Anywhere in the World
Control this Web Relay from anywhere you can get an internet connection and on any device with a web browser. That means that your computer, PDA, cell phone, iPhone or iPad becomes a remote control for this device! This new services is available through our website Link.Signalswitch.com. Each .NET module has a unique MAC address printed on the top and you can simply enter http://link.signalswitch.com/MacAddress into the URL. Example: http://link.signalswitch.com/00409D43F71C and then type in the password. It's that simple, after a few moments you will be granted access to the controller. A static IP address is NOT REQUIRED for remote access and the device and computer MUST have separate internet connections.You can Demo This Interface Now at http://www.signalswitch.com:8080/ and control a Live Board here in our office.
Control this Device from a Local Area Network
This device can also be controlled over a Local Area Network. You may need to log into your router to find the IP address. Take note of the MAC address printed on the top of the .NET controller. Your router will display a list of IP addresses and associated MAC addresses. Take note of the IP address that matches the printed MAC address on your controller. Open any web browser and type the IP address into the URL.ZETH-NET Web Relay Features
ZETH-NET is an Open-Source project that offers a powerful web-browser interface for direct control of relays from a web-page served directly to users from the ZETH-NET module, without the need for a server. In addition to a web browser relay control interface, ZETH-NET devices also allow you to control the device from your own software through direct TCP/IP communications while still hosting a web browser interface. Write software that directly accesses the controller or access the control from your web browser.
As an Open-Source project, you can customize the interface as needed using .NET development tools. The Open-Source project for ZETH-NET opens December, 2010. We have an Expected ship date of June 15th for the new ZETH-NET module. You can preorder the ZETH-NET module for this controller when you place this controller in the shopping cart. Use the chart below to compare features of the ZETH-ME and ZETH-NET Ethernet Modules.
| Additional Features: | ZETH-NET |
| Supports Direct TCP/IP Communications | YES |
| Supports Direct Connection to SignalSwitch.com | YES |
| Supports Multiple Communication Methods (Above) Simultaneously |
YES |
| Supports Direct Internet Access Without a Server (requires static IP) |
YES |
| Open-Source User-Upgradeable (requires development software) | YES |
| Web-Browser Interface for ProXR Series Controllers | YES |
| Web-Browser Interface for Reactor Series Controllers | YES |
| Web-Browser Interface for Taralist Series Controllers | YES |
| Web-Browser Interface for Network Configuration | YES |
| Supports DHCP | YES |
| Supports Fixed IP Address | YES |
| Password Protection | YES |
Resources
| NCD Base Station Software |
 Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device. |
| Configuration Utility |
Download the NCD Configuration Utility |
| Reactor Manual |
 Download the Reactor Manual to learn about the Reactor Logic and Configuration |
| Reactor Packages | Reactor Packages |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

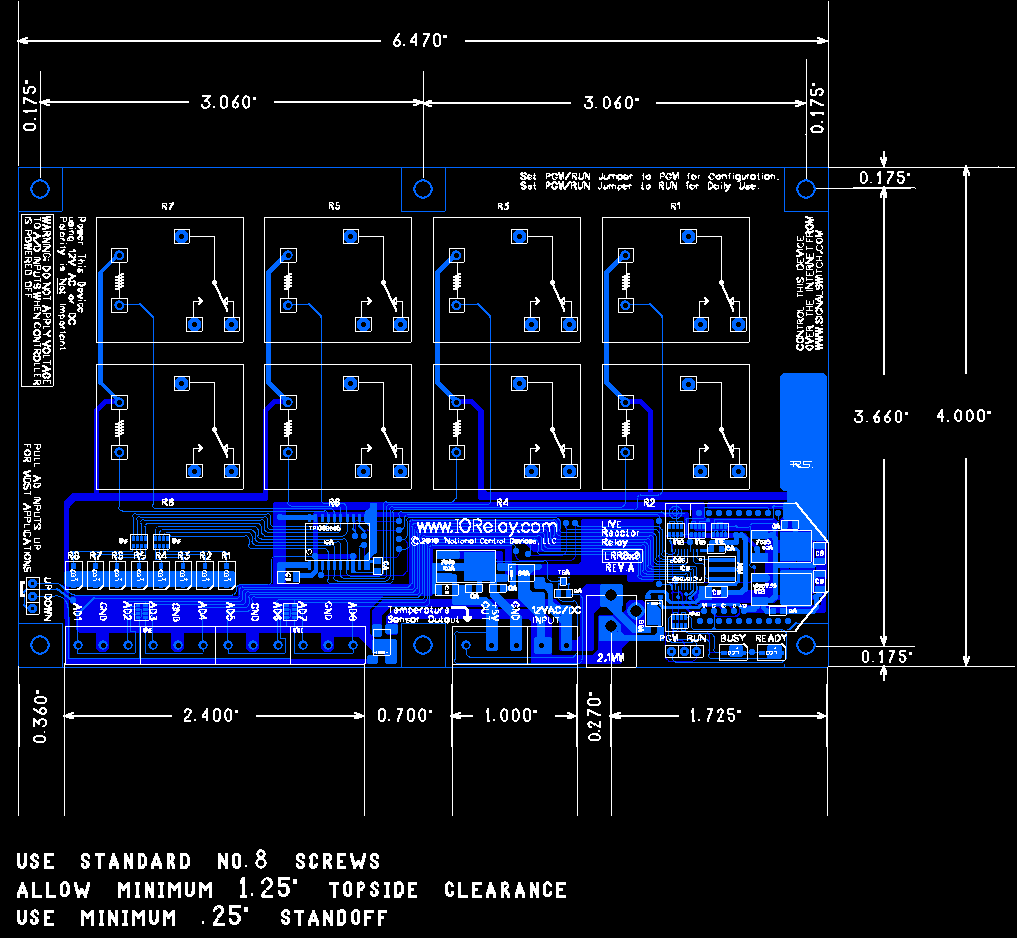

| Mechanical Drawing | Mechanical Drawing for this board |
