The Reactor Series Controllers are designed to use sensor inputs to detect changes and react to those changes according to user configured parameters.
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Configure or Take Control with Bluetooth Wireless
Relays Trigger When Sensor Limits Reached or Override with Computer Control
Reliable Switching With or Without a Computer
This Reactor Relay is equipped with 8 Analog Inputs that can read switches, resistance changes, or voltages from 0 to 5VDC. Once the limits are reached from the settings you configure the relay will trigger. It's that simple. If the controller remains connected to a computer a computer can trigger relays, timers or events that are stored on the controller for computer control without programming or overriding the analog inputs.
You can expect this Reactor Bluetooth device to function properly in most applications up to 100 feet with the Basic Internal Antenna option. The Enhanced Range External Antenna will give a range of up to 300 feet. The default option is the Basic Internal Antenna and the Enhance Range Antenna is available as an option during checkout. We currently do not support any Bluetooth Communications on mobile device platforms other than Windows Mobile devices.
Intelligent Switching without a Computer is the foundation of the Reactor Series relay controllers. The Reactor Series will help you activate a switch when it gets dark outside. If the door has been left open, it will close automatically. When the temperature falls, another switch is triggered. If motion is detected, a light will turn on for a preset time. When soil in the ground is too dry, a switch will be activated that can save your crops, save your energy, save you a trip to the field, and save you money.
|NCD Base Station Software||Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device.|
|Reactor Quick Start Guide||Download the Reactor Quick Start Guide to learn about the Reactor Logic and Configuration|
|Reactor Packages||Packages containing everything you will need for many of our most requested applications|
|Sensors and Accessories||Reactor Controllers work with Many Sensors and Switches, We are Growing our List of Sensors to Help Speed Development Time|
|NCD Component Library||The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.|
|Wiring Diagrams||These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic|

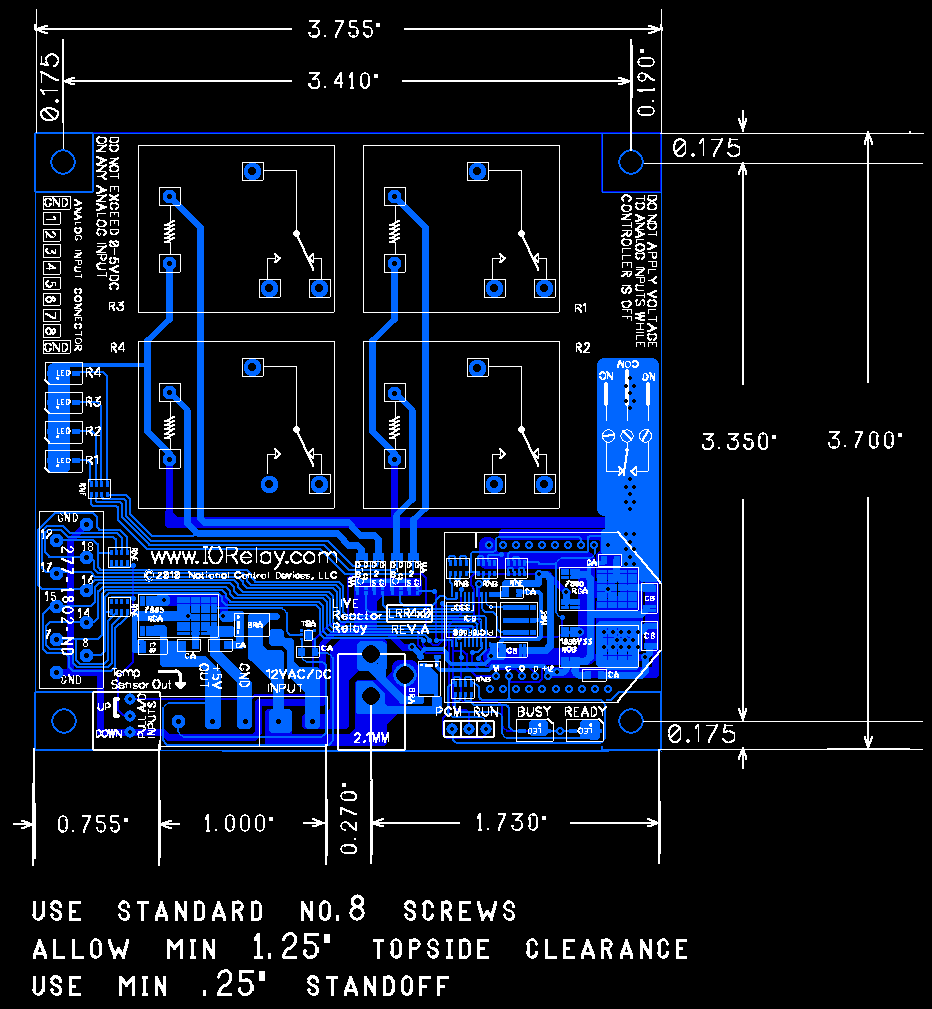

|Mechanical Drawing||Mechanical Drawing for this board|

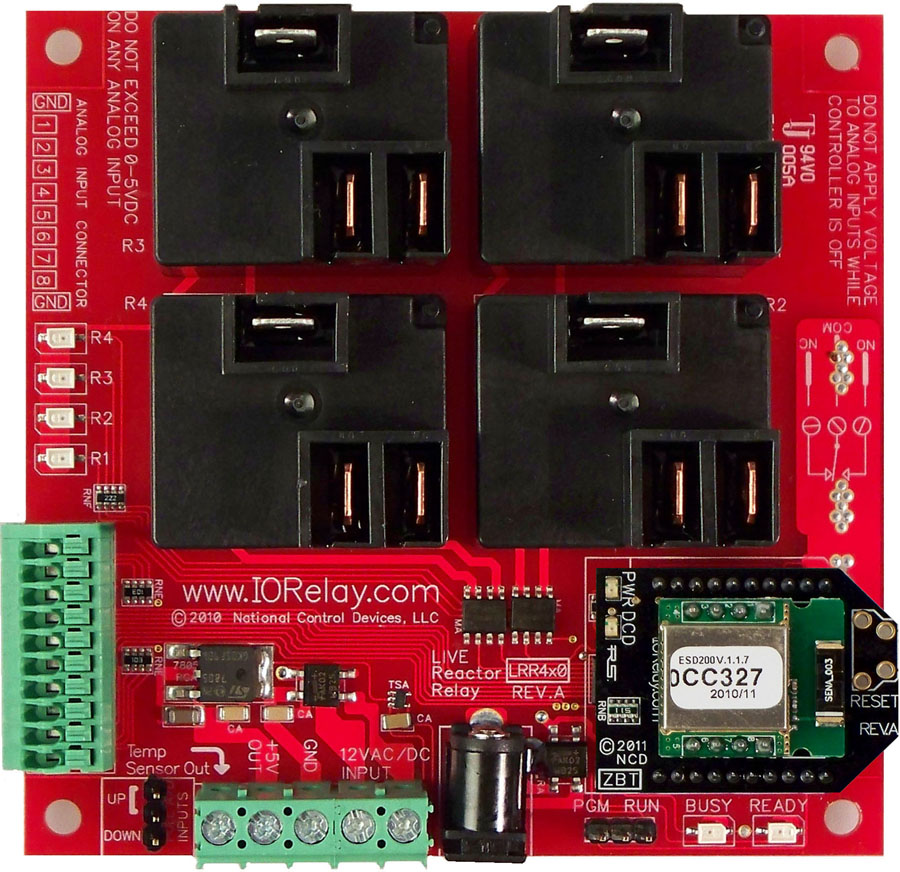

Reactor Relay 4-Channel 20-Amp SPDT + 8-Channel 8-Bit A/D with Bluetooth Interface
Quantity in Basket:
Shipping Weight: 1.00 pounds
|Reactor Relay 4-Channel 20-Amp SPDT + 8-Channel 8-Bit A/D with Bluetooth Interface|
