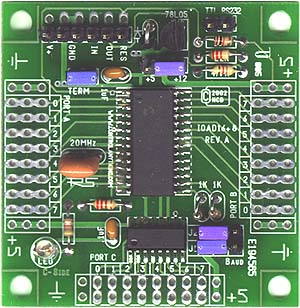

IOAD168

16-Bit IO + 8-Bit Out + 5-Channel A/D RS-232 Controller

16-Bit TTL/CMOS Programmable I/O
8-Bit Output ONLY Data Port
Read/Write Individual Port Bits
Parallel-to-Serial Encoder
Serial-to-Parallel Converter
16-Button Keypad Encoder
5-Channel 8-Bit/10-Bit A/D Converter
Controls up to 3 Character LCD/VF Displays
Keypad/LCD Terminal Command Set
PLUS:
Compatible With Expansion Modules
for Analog-to-Digital Conversion,
DC Motor Control, High-Current O.C.
Drivers.  Fully E3C Compliant Allowing
256 NCD Devices to Share a Serial Port.
RESOURCES:
Visual Basic 6 Source Code and Examples.
Download the IOAD168 Manual, Includes Wiring Examples and a Complete Command Set for the IOAD168.
Control 256 NCD Devices from a Single RS-232 Serial Port.

NOTICE: EXPANSION MODULES ARE AVAILABLE TO ADD CAPABILITIES TO THIS DEVICE.

FEATURES:

Compact, Low-Profile Design
2400, 9600, 19.2K, 38.4K Baud Operation
Connect 256 Devices per Serial Port
Control up to 16 I/O and 8 Output Lines
Programmable E3C Device Number
Configure Individual Lines for I/O or A/D
Extensive E3C Compliant Command Set
Easy Command-Based Serial Protocol
Integrated LCD Display Controller
Integrated Programmable Keypad Encoder
Key Presses Appear on LCD Display
Hidden PASSCODE Request Function

Use Expansion Modules to Add Features
Simple 2-Wire or 3-Wire Communication
+5 or +12 Volt Operation
Just 2" x 2" Square



IOServo Multi-Function Controller
Stock #: IOAD168
1-9 $99/ea
10-24 $84/ea
25-99 $72/ea
100+ $59/ea


Compatible Expansion Modules:

When the IOAD168 is configured as an IO controller, the following expansion modules can be used to expand its capabilities.

AD1216:12-Bit 16-Channel A/D Converter

8FET:8-Channel High Power O.C. Hexfet Driver

TRDVR:8-Channel Low Power O.C. Driver

IOTEST-L:8-Channel Output Tester with 10 LEDs

IOTEST-D8: 8-Channel Input Tester-8 DIP Switches

Quick Start Kits:
Quick Start Kits provide you with everything you need to use the IOAD168 as quickly as possible.  The kit includes a serial cable, a regulated +5 VDC power supply, and an RSIOadapter board (shown above) that adds a DB9 serial and power connector the the IOAD168.
Quick Start 5 Kit $49


The IOAD168 was designed to offer desktop and embedded programmers a convenient way to access low-level digital logic (TTL/CMOS) I/O and A/D functions using simple RS-232 serial commands.

The IOAD168 has two user-programmable TTL/CMOS I/O data ports and a single 8-Bit Output Only data port.  Port A (8-bit I/O) can also be used as a 5-Channel Analog to Digital converter.  The IOAD168 command set supports A/D read function by simply selecting the channel and resolution (8-bit or 10-bit).

The IOAD168 allows user bit control of all ports, allowing you to mix input, output, and A/D functions on a I/O port.  The IOAD168 command set supports commands reading the on/of status of all bits at once (for parallel to serial encoding) and for writing bytes of data to each port (serial to parallel conversion).

Other commands allow for interface to standard 16-button keypads, up to three character LCD or VF displays, as well as the complete line of NCD expansion modules.  Expansion modules add capabilities to the I/O ports on the IOAD168.  Supported expansion modules include the popular AD1216, used to add 16-channels of 12-bit A/D onto a single I/O port.  The PAR24 expansion module is also supported, adding 24-bit parallel output only to any I/O port.

Terminal functions allow the IOAD168 to operates as a 2-way interface between the user and a host computer in 256 different locations.  Key Presses on a 16-button keypad can be displayed directly on the LCD screen OR hidden with the letter "X" (useful for PIN and Pass Code requests).  The integrated keypad is fully programmable, allowing the user to define each of 16 keys + one hidden PIN character.

Supported communication rates include 2400, 9600, 19.2K, and 38.4K baud.  The command set is very easy to implement, simply send ASCII character codes to control the functions of the IOAD168 board.  Some functions, such as A/D, send data bytes back to the computer.  Our example software shows how to handle all communication to the IOAD168 using Visual Basic.

The IOAD168 is E3C compliant, allowing communication to 256 NCD devices in any combination.  The IOAD168 allows users to program the E3C device number into the controller using a

FIRMWARE UPGRADEABLE:

The IOAD168 is firmware upgradeable, simply return your IOAD168 to have the latest firmware programmed into the device, free of charge (shipping charges apply).

Current Revision: 1.00 (Device Returns 1 when Queried)
Voltage Requirements: +5 or +12 volt Jumper Selectable
Current Consumption: 100 ma MAX
Supported Baud Rates: 2400, 9600, 19.2K, 38.4K
NOTE: I/O LINES ARE NOT PROTECTED FROM USER ERROR.

Click Here to Download Test Programs Shown Below.
5-Channel High Speed 8-Bit A/D Converter Built-In
5-Channel High Speed 10-Bit A/D Converter Built-In
Using AD1216 Expansion Modules, the IOAD168 can read up to 96 Channels of 12-Bit A/D
Customize the Keypad Encoder and other IOAD168 Parameters using Windows

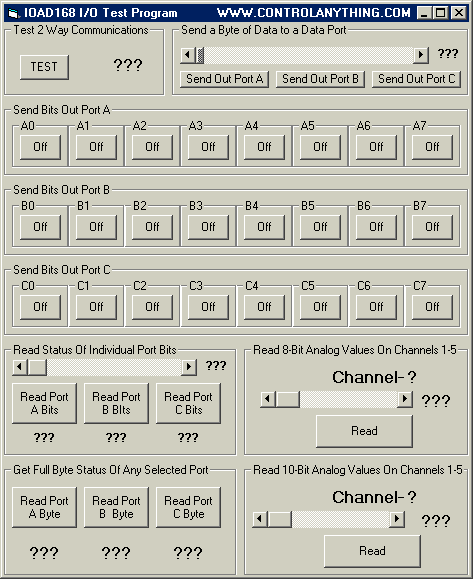

Use our Test Programs to Explore the Capabilities of the IOAD168
The Integrated Keypad Encoder Functions are VERY EASY TO USE
The PAR24 Expansion Module can be used to add TTL/CMOS Outputs to the IOAD168.  Each PAR24 adds 24 TTL/CMOS Outputs.  Up to 4 PAR24 boards can be controlled from a single IOAD168
Control the On/Off Status of 24 Lines (3 Ports of 8 Bits)
Each of the three 8-bit data ports can be used as a Serial-to-Parallel Converter

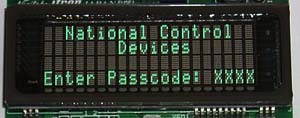

Keypad Key Presses can be Sent Directly to the LCD Screen OR they can be Hidden with an "X" for each Key Press

The IOAD168 can be used with up to 3 different character LCD or VF display controllers



16-Bit IO + 8-Bit Out + 5-Channel A/D RS-232 Controller


  Quantity in Basket: None
Code: IOAD168
Price: $99.00
Shipping Weight: 0.10 pounds

OPTIONAL: Quick Start Kit, Includes Serial Cable, Regulated +5 Volt Switcher Power Supply, and RSIO Serial Adapter Board with 6-Conductor Flex Ribbon Cable $49
OPTIONAL: USB to RS-232 Serial Adapter (Above Option Recommended) $24
OPTIONAL: 8FET 8-Channel O.C. FET Driver Expansion Module $49
OPTIONAL: AD1216 16-Channel 12-Bit A/D Expansion Module $89
OPTIONAL: DCM1 High-Current DC Motor Controller Expansion Module $79
OPTIONAL: TEST-L 10-LED Output Test Expansion Module $10
OPTIONAL: TEST-D8 8-DIP Switch Input Test Expansion Module $10
OPTIONAL: TRDVR 8-Channel Low-Current O.C. Output Expansion Module $34
OPTIONAL: PAR24 24-Bit Parallel Output Expansion Module $49
