RS-232 Display Controller Chip for Noritake GU160x32 VF Display

Quantity in Basket: None
Code: GDCN-GU160x32
Price: $34.00
Shipping Weight: 0.10 pounds

Package:

Resonator:

Quantity:

RS-232 Display Controller Chip for Noritake GU160x32 VF Display

DID YOU KNOW?

We Make a Controller that Uses This Chip!!!

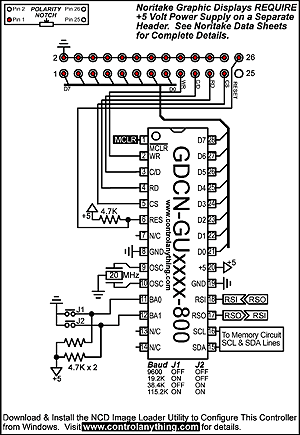

Noritake -800 Series Manual

GUxxxx-800

The NCD GDCN-GU line of VF display controller chips were designed to work with the Noritake -800 series graphic VF display devices. Our line of graphic controller chips make it easy to control these displays by offering a simplified command set to an otherwise complicated display.

Our graphic display controller chips do everything for you, including display initialization, picture storage, font manipulation, text positioning, scrolling, and icon placement. All you have to provide is your own graphics (drawn in your favorite paint program) and a few simple commands to tell our controller what to do. We take care of the rest.

If you have ever tried to use a graphic display, then you will appreciate the simplicity of our GDCN series graphic display controller chips.

Data Sheet for our line of Graphic Controller Chips.

Image Loader Utility Software Stores Images & Icons.

Manual for Above Software.

Electrical Ratings for PIC Chips

	Data Sheets for Displays:
	GU128X32-800

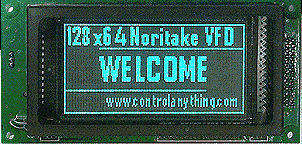

	GU128X64-800
	GU160X16-800
	GU160X32-800
	GU192X16-800
	GU256X32-800
