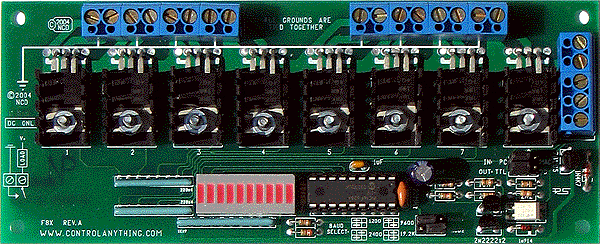

F85 RS-232 Solid State Controller FET Controller

RS-232 Serial Solid State Controller 8-Channel 5-Amp N-Channel FET Controller Board

	Control this Device Over the Internet Signal Switch Compatible
	5-AMP N-Channel FET Controller $134/ea

RESOURCES:
	Download Visual Basic Example Source Code
	Download the R4x/R8x/F8x Product Manual
	Control 256 NCD Devices from a Single RS-232 Serial Port

FEATURES:

Low-Cost 8-Channel FET Configuration

1200/2400/9600/19.2K Baud Operation

8 Channel PWM LEDs

Control 256 Levels for Each FET

Programmable Power-Up Level

Two-Way Communication Capabilities

E3C Compliance

Programmable Power-up Memory

Quick Connect Terminal Blocks

Optoisolated RS-232 Inputs

Intelligent Status LEDs

2 RS-232 Input Levels

+12 Volt Operation, 2/3-Wire RS-232

See Manual for Outline Dimensions

IMPORTANT NOTICE:

Theoretical ratings shown below. These devices may exceed listed ratings. If not, you may qualify for free replacement components. Contact Us for Details.

1-Amp FET Drivers

Ratings	Resistive Load	Inductive Load
Voltage	12VDC	12VDC
Amperage	1A	.5A

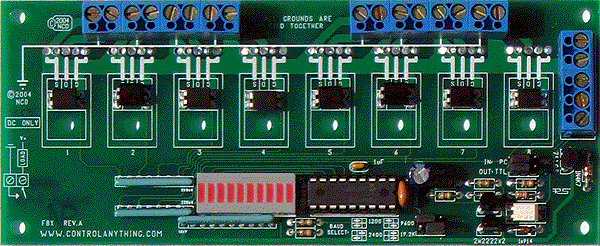

	1-AMP N-Channel FET Controller
*Stock #: F81*
1-9	$99/ea
10-24	$94/ea
25-99	$91/ea
100+	$82/ea
(click above picture to enlarge)

3-Amp FET Drivers

Ratings	Resistive Load	Inductive Load
Voltage	24VDC	24VDC
Amperage	3A	1.5A

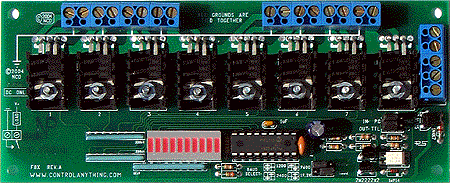

	3-AMP N-Channel FET Controller
*Stock #: F83*
1-9	$119/ea
10-24	$109/ea
25-99	$100/ea
100+	$94/ea
(click above picture to enlarge)

5-Amp FET Drivers

Ratings	Resistive Load	Inductive Load
Voltage	24VDC	24VDC
Amperage	5A	2.5A

	5-AMP N-Channel FET Controller
*Stock #: F85*
1-9	$134/ea
10-24	$124/ea
25-99	$115/ea
100+	$100/ea
(click above picture to enlarge)

Quick Start Kit: QS12

Quick Start Kits provide everything you need to begin using your F8x controller. Kit includes a high quality regulated switcher supply, serial cable, and RSIO adapter (shown below).

*QS12*	*$49*

National Control Devices
www.iorelay.com
Since October, 1995

The F8x series controllers are our first DC solid state HEXFET controllers, offering all the features of the R8xPRO series relay controllers. HEXFETs are silent, low-cost, and have a reputation for a very long service life. The F8x series controllers is designed to simply connect an external, high-power DC load to a common ground under computer control.

The F8x has 2 terminal connections for each SPST normally open solid-state relay. The F8x series can only be used with DC loads. The RS-232 interface for this controller is optically isolated, providing up to 2500 volts of protection between our controller and your PC.

The F8x offers the same command set as the R8xPRO series relay controllers, including the sane on-board memory. Emulation mode is not supported by the F8x series controllers.

The F8x series include 8 on-board status LEDs and two additional LEDs driven entirely by the firmware, indicate when a valid command is in process and when the device is ready for commands.

Our new and improved command set allows you to set the status of all HEXFETs at once or one HEXFET at a time. In addition, you can request the status of individual HEXFETs or all HEXFETs at once.

Memory features allow you to store the default on/off status of all HEXFETs when power is first applied to the board. In addition, the current HEXFET activation pattern can be stored and recalled into 16 different memory banks, allowing you to define "macros" that prevent some HEXFETs from activating at the same time.

A timer function was added to activate one or more HEXFETs for controlled periods of time.

Connection:

Connecting an external load, such as a DC motor to the F8x is very easy. A typical DC motor has two leads, positive and negative. Simply connect the V+ of the motor to the V+ of your power supply, such as a 12V car battery. Connect the Ground Lead of your car battery to the Ground Connection on the F8x. Connect the Load Lead on the F8x to the Ground Connection of your motor. Next, connect the QS12 quick start kit (which includes a serial cable and power supply for powering the logic on the F8x). You are now ready to control the on off status of your motor under computer control.

Product Features:

The F8x is E3C compliant, allowing up to 256 NCD devices to share a single serial port. The PWM8x is optically isolated from the control computer, preventing damaging voltage spikes. The F8x operates at 1200, 2400, 9600, or 19.2K baud and is capable of controlling each channel individually or all eight channels simultaneously.

Choosing a Controller:

The F81 is perfectly suited for automotive lighting applications (except headlights), such as custom turn signals and interior lighting. The PWM83 is suitable for larger lights and small DC motors, solenoids, and valves. The PWM85 is suitable for larger DC motors found in most robotic control applications, large solenoids, valves, and many other DC loads. Please see the product manual for maximum electrical ratings.

Should you have any questions, please contact us.

WARNING: RISK OF ELECTRICALSHOCK WHILE DRIVING INDUCTIVE LOADS. HEAT SINKS MAY BECOME VERY HOT UNDER NORMAL OPERATION. SERIOUS BURN RISK!

RS-232 8-Channel 5-Amp N-Channel FET Controller Board

Quantity in Basket: None
Code: F85
Price: $134.00
Shipping Weight: 0.33 pounds

RoHS (Lead Free) Options:

	Non-RoHS Compliant
	RoHS Compliant (+$10)

OPTIONAL: Quick Start Kit, Includes Serial Cable, Regulated +12 Volt Switcher Power Supply, and RSIO Serial Adapter $49:

	No Thanks! I don't need a Quick Start Kit
	US - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply
	US RoHS - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+10)
	Intl - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$12)
	Intl RoHS - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply w/4 Adapters (+$22)

OPTIONAL: USB to RS-232 Serial Adapter (Above Option Recommended) $24

Quantity:

RS-232 8-Channel 5-Amp N-Channel FET Controller Board
