Product Discontinued
This product has been replaced by ZUXPSR3210PROXR_ZBT

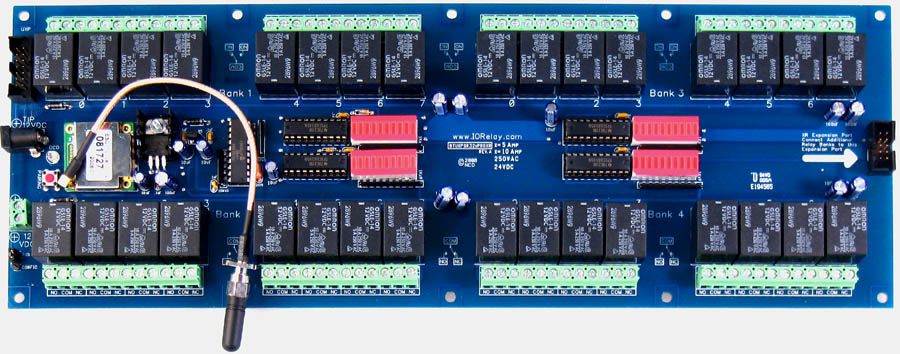

BTUXPSR3210PROXR Bluetooth Relay
Discontinued - This item has been replaced by a new Item, see product description for details
This Device Acts like its Directly Connected to the Serial Port of your PC, Laptop, or PDA!!! Wireless Data Collection and Control Could NOT be Easier!!! Bluetooth Powered Relay Controllers Offer Wireless Communications with No Special Software and
NO DRIVERS REQUIRED!!!
Resources
 |
NEW TO BLUETOOTH? GET STARTED HERE Click the above link for an exclusive article on Bluetooth communications |
| Download Manual | Download Product Manual |
| Download Software | Download Example Software and Source Code for Visual Studio 2005/2008 |
Software Development Tools:
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
Features
- Bluetooth Wireless Interface Mounts as a Virtual COM Port on your PC, Laptop, or PDA for Easy Programming and 100% Compatibility Across ALL Operating Systems
- UXP Expansion Port Adds I/O Capabilities as your Needs Grow
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- Add Relays to this Controller is your Needs Ever Grow
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
- CPU Status LEDs Show Command Processing Activity
This Product:
BTUXPSR3210PROXR
| Ratings | AC | DC |
|---|---|---|
| Voltage | 240 | 24 |
| Amperage | 10 | 10 |
|
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: BTUXPSR3210PROXR | |
| 1-9 | $679.00 |
Related Products:
BTUXPSR325PROXR
 |
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: BTUXPSR325PROXR | |
| 1-9 | $599.00 |
www.controlanything.com
Since October, 1995
Wireless Bluetooth ProXR Enhanced with UXP:
Bluetooth Relay Controller with
UXP Expansion Port and
XR Expansion Port
Take all the Power of the ProXR Series Relay Controllers...add a SENA Bluetooth Interface:
Remote Wireless Data Collection and Control is Effortless!
About Bluetooth
So, you are looking for an easy way for your laptop or PDA to talk to a relay controller with minimal programming. No Problem, we have just the thing. Data Collection and Control from a Single Controller allows any Bluetooth equipped computer to talk to our devices as though they were directly connected to a serial port....with NO DRIVERS REQUIRED!
It works like this. Power up our controller. Boot up your laptop or PDA. Use your Bluetooth software built into your computer to Pair this device with your computer. Once Paired, this device will mount as a COM port on your PDA or Laptop. Now all you have to do is write a simple program to open the COM port of your computer to talk to this device.
About ProXR
If you are already using one of our ProXR series controllers connected to the Serial Port or USB Port, then you will not have to make any software changes. This device works as though it were directly connected to a serial port on your PC, offering 100% transparent wireless serial communications.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allows you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
Read More About the ProXR Standard
About Universal Expansion Ports
If you need to add capabilities beyond basic relay control to your application, then you may want to consider using one of our controllers equipped with a UXP Expansion Port. UXP is a standardized data port, specifically for the purpose of speaking to various expansion modules. This Relay Controller is equipped with a UXP port, allowing you to take advantage of extended commands to speak to our growing line of I/O expansion modules.
Free ProMOTE Software
ProMOTE Lets you Control NCD Devices from your Phone, PDA, Pocket PC, or Computer! Create your OWN Interface to Control NCD Devices with NO PROGRAMMING!!...Best of All...It's FREE!!!
The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING! Simply download and install the free software, configure the buttons to fit your needs and you're ready to go. With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier!
Discontinued - This item has been replaced by a new Item, see product description for details | |
|
Quantity in Basket:
None
Code: BTUXPSR3210PROXR Price: $679.00 Shipping Weight: 5.00 pounds | |
| Discontinued - This item has been replaced by a new Item, see product description for details | |
