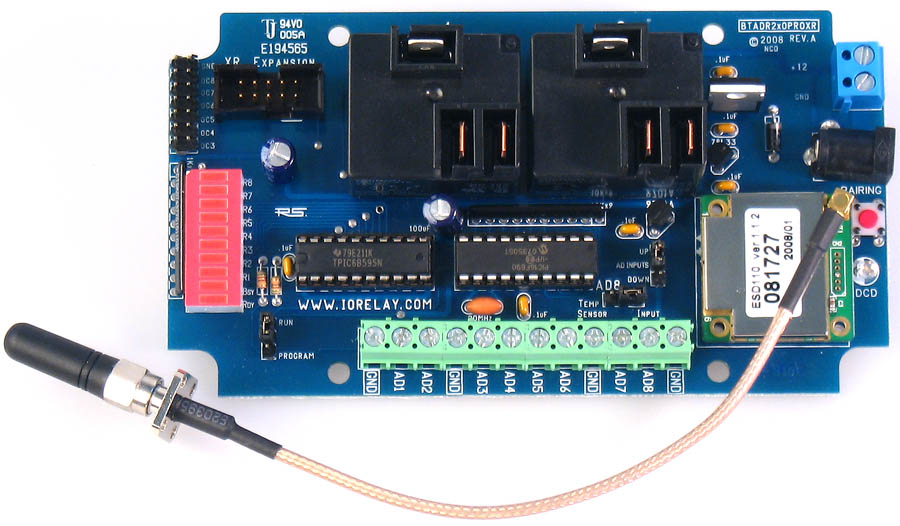

Wireless Bluetooth ProXR Enhanced with A/D
Take all the Power of the ProXR Series Relay Controllers
...add a SENA Bluetooth Interface:
Remote Wireless Data Collection and Control is Effortless!
About Bluetooth
So, you are looking for an easy way for your laptop or PDA to talk to a relay controller with minimal programming. No Problem, we have just the thing. Data Collection and Control from a Single Controller allows any Bluetooth equipped computer to talk to our devices as though they were directly connected to a serial port....with NO DRIVERS REQUIRED!
It works like this. Power up our controller. Boot up your laptop or PDA. Use your Bluetooth software built into your computer to Pair this device with your computer. Once Paired, this device will mount as a COM port on your PDA or Laptop. Now all you have to do is
write a simple program to open the COM port of your computer to talk to this device or use our exclusive
ProMOTE Software. The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING! Simply download and install the free software, configure the buttons to fit your needs and you're ready to go. With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier!
Read More About Bluetooth Communications
About ProXR
If you are already using one of our
ProXR series controllers connected to the Serial Port or USB Port, then you will not have to make any software changes. This device works as though it were directly connected to a serial port on your PC, offering 100% transparent wireless serial communications.
With all the control and backward/forward compatibility you have come to expect from the
ProXR series command set, this controller allows you to send simple commands to activate relays, read the status of relays, activate up to
16 relay timers, and control up to 256 total relays using the
XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
Read More About the ProXR Standard
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the
NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.
Read More About Analog to Digital Conversion
ProMOTE Lets you Control NCD Devices from your Phone, PDA, Pocket PC, or Computer! Create your OWN Interface to Control NCD Devices with NO PROGRAMMING!!...Best of All...It's FREE!!!
The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING! Simply download and install the free software, configure the buttons to fit your needs and you're ready to go. With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier!
