Product Discontinued
This product has been replaced by ZADR220PROXR_ZRS

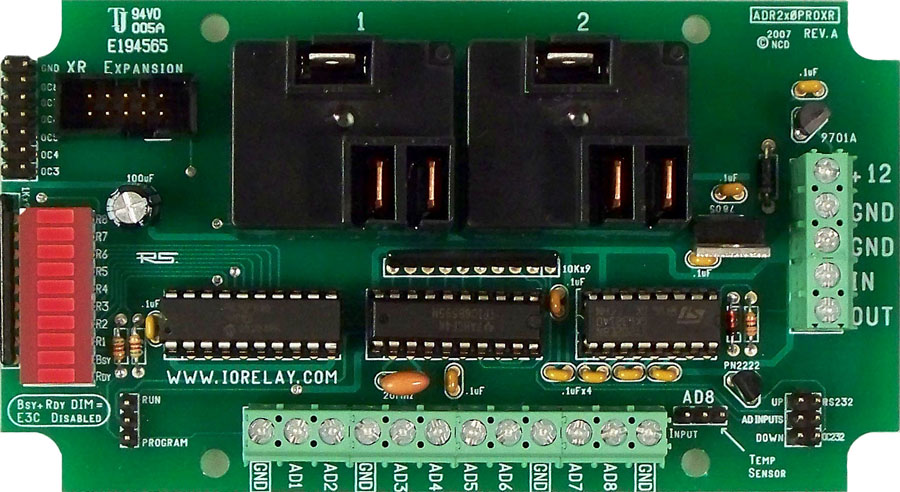

RS232 ProXR Relay Control with Analog to Digital Inputs
RS-232 Relay Controller 2-Channel 20 Amp SPDT + 8-Channel 8/10-Bit A/D
Product Code: ADR220PROXR
Setup for the ADR45ProXR RS232 relay shown above connecting to the optional QS12 Quick Start Kit then connecting to a 16 channel expansion board using the XR Expansion Port. A USB to Serial adapter can also be used if you need to connect to a USB port. .
ProXR Relay with A/D at a Glance
- Analog to Digital Conversion allows you to read voltage levels from 0-5 volts
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your RS232 Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- 2400 to 115.2K Baud RS-232 Serial Connection for High Speed Switching
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing ProXR Command Set
- 8-Channels of 8-Bit or 10-Bit A/D
Video Resources
(Select a thumbnail to view the video)Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
Related Products:
ADR230PROXR
 |
RS-232 Relay Controller 2-Channel 30 Amp SPST + 8-Channel 8/10-Bit A/D |
| Stock#: ADR230PROXR | $164.00 |
Enclosure Available
SR153B
 |
The SR153B is an undrilled, non-waterproof enclosure and is available at checkout for this controller. |
| Stock#: ENC-SR153B | $19 |
Desktop Control
N-Button Lite
 |
N-Button Lite creates up to 8 desktop widgets to turn relays on/off or read A/D inputs directly without any programming. |
| Stock#: N-Button Lite | $49.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
RS232 Relay with ProXR Command Set
and A/D Conversion
The Most Powerful Command Set Available Anywhere
Read Sensors & Contact Closures with Built-In A/D Conversion
ProXR - The Most Powerful Relays Available!
RS-232 ProXR Relay Controller
This ProXR controller is built with the most powerful command set available anywhere. Put simply, ProXR is a standardized set of commands for controlling relays. This controller is also equipped with Analog to Digital conversion which is simply converting a voltage in the range of 0 to 5VDC into a number that can be processed by custom software that you develop. The applications are limitless and the data that you receive such as light levels and temperature levels can easily activate relays when A/D levels are reached. See more on A/D Conversion below.
Once powered up, the relay controller waits for a command. A command consists of a few bytes of data. Usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command. You can send commands to activate relays, deactivate relays, control all the relays at one time, plus you can send commands that tell a relay to turn on for a few seconds, minutes, or hours. You can assign 16 timers to any of the 256 relays, and set the timers to go off after the duration has expired. Look at the ProXR Command Set to see the full list of commands available.
The features list of the ProXR series controllers is extensive. Our ProXR Software helps get you acquainted with the powerful command set. To download, look for the ProXR Software in the Resources section to the right and bottom of this page. The ProXR Manual and the mechanical drawing with dimensions and hole layouts can also be found in the Resources section.
Out of the box, the ProXR series controllers are ready to control 256 relays. You may not have 256 relays just yet, but if your application grows, then the controller is ready to grow with you. The ProXR series controllers are built from the ground up to be expanded. When you need more relays, the XR Expansion port will allow you to add another bank of relays (any kind you need), with programming changes taking minutes instead of hours. No complicated protocols, just simplicity, built into the controller from the very beginning.
Connect this board to the USB port of your computer using a USB to Serial adapter. The USB to Serial Adapter is to be used with the Quick Start Kit and is available at checkout.
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.
Read More About Analog to Digital Conversion
NCD Component Library
Fully functioning programs for the ProXR Series Controllers are included with the NCD Component Library. With the NCD Component Library we've "started" the programming for you. We say started because these are fully functioning samples but we've also included the source code so you can customize them to your exact needs. The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs. Many different ProXR Series samples are available including Relay Control, Read Status, Analog to Digital Conversion, Motion Detection, and Timing Features. To view screen shots of each sample visit our NCD Component Library Page. Start by downloading the FREE NCD Component Library and you will be communicating with any NCD device faster that ever!
 This sample demonstrates control and status read of up to 8 Relays. Compatible with all ProXR Series Relay Controllers. |
| The above screen shot shows one of the many fully functioning ProXR Series samples that are available with the NCD Component Library. View all the examples on our NCD Component Library Page. |
N-Button Lite
N-Button Lite creates up to 8 buttons or widgets to control relays without any programming. A new button will be created and placed on the desktop of your computer for each relay that you want to control. N-Button Lite supports Serial Port/ USB and Network connection between PC and relay board. N-Button Lite Manager makes it easy to add any type of button to the desktop and change the properties.
Analog to Digital meters can also be added to your desktop to instantly read the status of any sensor or probe you may have connected to the board. Each meter is customizable and can be changed without any programming knowledge.| Relay Button widgets turn on/off relay directly. It has never been so easy to control relays before. | |||
 |
 |
 |
 |
| Relay Status widgets show status of the relay automatically. | |||
|
 |
 |
 |
| A/D Meter widgets display the value of A/D channel automatically. | |||
 |
 |
 |
 |
| Customized Button widgets allows you send any of the commuands in the manual to relay board. | |||
 |
 |
 |
 |
N-Button Lite is available as a free download. Look for the Desktop Control section to the right to download.
N-Button Lite version supports up to 8 widgets. If you want to add more than 8 widgets, simply upgrade to the N-Button Standard version.
Quick Start Kits
Also available is our QS12 Quick Start Kit. Kit includes a high quality regulated switcher supply, serial cables, and an RSIO adapter board used to add a standard serial and power connector to this relay controller. This Quick Start Kit can be purchased during checkout of this controller.
Resources
 |
NEW TO RS232 COMMUNICATIONS? GET STARTED HERE Click the above link for an exclusive article on RS232 Communications |
| RS232 Relay Article | RS232 Relay Article |
| Download Manual | Download the ProXR Manual Manual |
| ProXR Software | Download Example Software and Source Code |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes four example applications compatible with the Pro Series. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

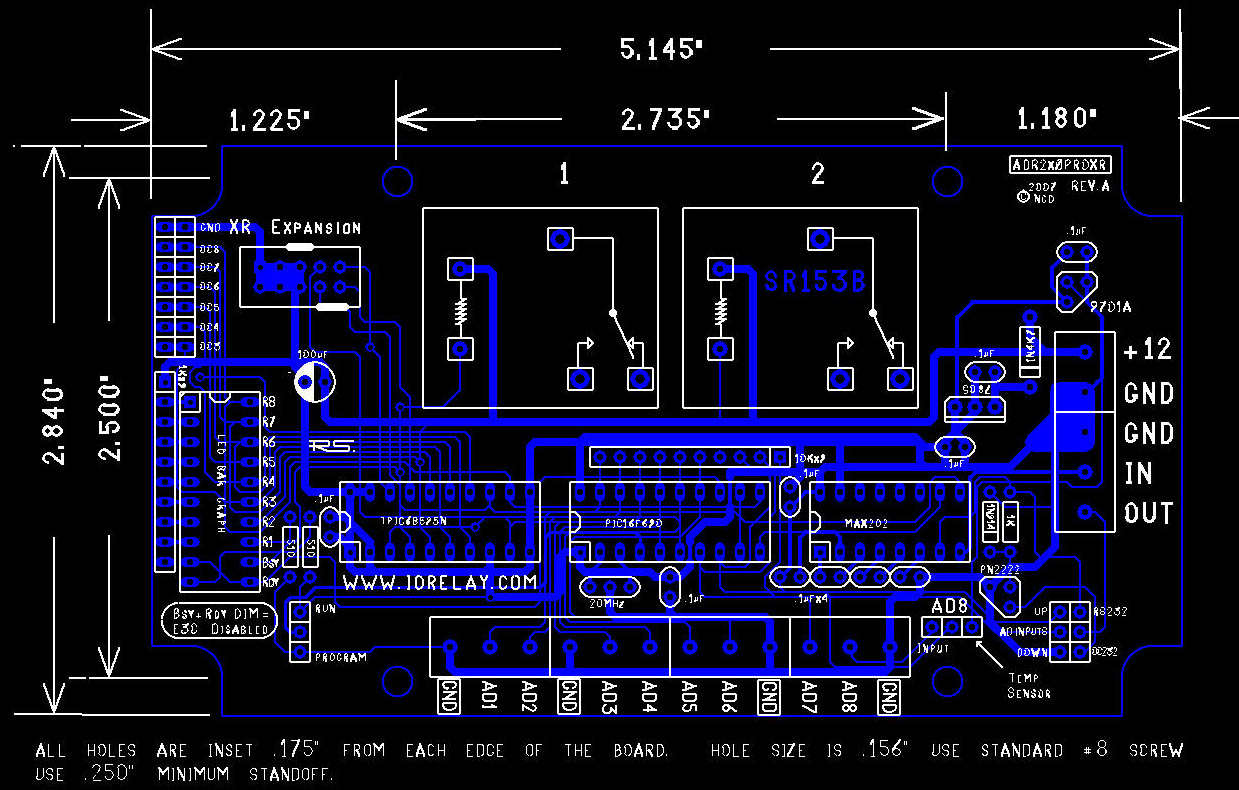

| Mechanical Drawing | Mechanical Drawing for this board |
RS-232 Relay Controller 2-Channel 20 Amp SPDT + 8-Channel 8/10-Bit A/D | |
|
