National Control Devices: ASCII Backpack Matrix Keypad Encoder

ABTPRO ASCII Backpack Matrix Keypad Encoder
	Control this Device Over the Internet Signal Switch Compatible
	ASCII Backpack Encoder $34/ea

RESOURCES:

FEATURES:

Compact, Low-Profile Design

1200 or 9600 Baud Output

Programmable ASCII Output Range

TTL RS-232 Output

+7 to +12 Volt Operation

Low-Power Operation

Low-Cost Encoding Solution

Storm Keypad Interface

On-Board Voltage Regulation

Polarity Protection

1.775" x 1.375" Outline Dimensions

ASCII Backpack Encoder

	ASCII Backpack Encoder
*Stock #: ABTPRO*
1-9	$34/ea
10-24	$30/ea
25-99	$26/ea
100+	$21/ea

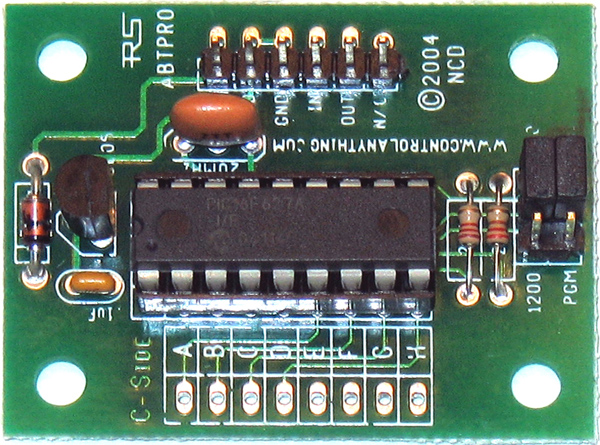

(click above picture to enlarge)

Quick Start Kit: QS12-F6

Quick Start Kits provide everything you need to begin using your ABTPRO Backpack Encoder. Kit includes a high quality regulated switcher supply, serial cable, and RSIO adapter (shown below).

QS12-F6

$49

The ABTPRO ASCII Keypad Encoder attaches to the back of a commercially available 16-Key Keypad and converts key presses into ASCII character codes. The ABTPRO spontaneously transmits an ASCII character code each time a key is pressed. The keypad encoder debounces each key-press in software and waits for the user to release the key before scanning and encoding the next key.

The ASCII character code output range is user-programmable. By default, the ABTPRO sends ASCII character codes 0-15. However, it is possible to configure the ABTPRO to send any consecutive output range from 0-255.

The ABTPRO is compatible with any matrix style keypad with 4x1, 4x2, 4x3, or 4x4 key configurations. Data output is a single byte transmission per key press. Hold and Repeat is not not supported. Combinational key presses are not supported.

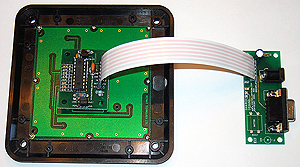

ABTPRO shown attached to the back of a STORM keypad and RSIO Serial Interface Board (Included with Quick Start Kit)

National Control Devices, LLC

www.controlanything.com

Since October, 1995

ASCII Backpack Matrix Keypad Encoder

Quantity in Basket: None
Code: ABTPRO
Price: $34.00
Shipping Weight: 0.10 pounds

OPTIONAL: Quick Start Kit, Includes Serial Cable, Regulated +12 Volt Switcher Power Supply, and RSIO Serial Adapter Board with 6-Conductor Flex Ribbon Cable $49:

	No Thanks! I don't need a Quick Start Kit
	US - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply
	US RoHS - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+10)
	Intl - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$12)
	Intl RoHS - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply w/4 Adapters (+$22)

OPTIONAL: USB to RS-232 Serial Adapter (Above Option Recommended) $24

Quantity:
