8FET

8-Channel High-Power HEXFET Driver Expansion Module

Compatibility:

IOServo:	IOAD168:
Port A: 1 Piece	Port A: 1 Piece
	Port B: 1 Piece
	Port C: 1 Piece

The 8FET Can Be Used on the Same IO Bus as the Following Expansion Modules:

IOTEST-L: 8-Channel LED Monitor

The 8FET Can Also be Connected to the Parallel Outputs of the PAR24.

See Examples of NCD Expansion Modules

RESOURCES:
	Download our Guide to Using NCD Expansion Modules

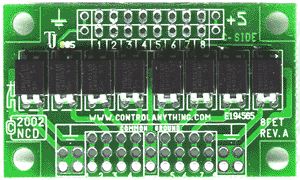

8-Channel HEXFET Expansion Module

Stock #: 8FET
Qty 1	$49/ea

The 8FET is an 8-Channel High-Current Output Expansion Module designed to be used with the IOAD168 controllers. The 8FET Connects to the TTL Data Bus of these controllers and provides a high-current open collector driver stage capable of directly driving relays, stepper motors, incandescent lamps, and other high-current devices.

Use the 8FET in conjunction with the PAR24 for additional outputs.

8-Channel High-Power HEXFET Driver Expansion Module

Quantity in Basket: None
Code: 8FET
Price: $49.00
Shipping Weight: 0.10 pounds

Quantity:
